What does a fiber optic adapter actually do?

A fiber optic adapter centres and aligns two connector ferrules so light passes from one patch cord to another. It is a mechanical part with no active components, yet its sleeve tolerance and alignment set the insertion loss and return loss of the joint.

How do I choose between an SC and an LC fiber optic adapter?

Follow the panel and the port count. SC adapters use a 2.5 mm ferrule and a square push-pull body, which suits ODF frames, ONU and OLT ports. LC adapters use a 1.25 mm ferrule and roughly half the footprint, so they fit high-density panels and SFP or QSFP ports.

Is a fiber optic flange the same as a fiber optic coupler?

In everyday trade use they overlap. Coupler usually describes the alignment function, while flange describes a panel-mount adapter with a mounting plate or screw holes. When ordering, state the connector interface, the mounting style and the required flange dimensions.

When is a hybrid fiber optic adapter needed?

A hybrid adapter joins two different connector interfaces, for example SC to LC or FC to SC. It is used during migration, when legacy frames meet new high-density panels, or when test leads must reach a port of a different format without extra patch cords.

Where should metal and waterproof fiber optic adapters be used?

Choose metal adapters for vibration, repeated mating and high-temperature racks, where a plastic housing would deform or wear. Choose waterproof adapters on outdoor cabinets, pole-mounted enclosures and drop entry points, where the joint must resist water, dust and UV exposure.

Can UPC and APC adapters be mated together?

No. UPC and APC ferrules have different end-face geometries, so mixing them causes high loss and possible damage. Green usually marks APC and blue marks UPC, and the adapter key must also match the connector key to keep the angled face aligned.

Adapters, couplers and panel flanges

Fiber Optic Adapters for Every Interface, Panel and Enclosure

Specify SC, LC, FC, ST, MPO and MTP adapters, then match sleeve material, polish, mounting flange and sealing to the frame, cabinet or outdoor route you are building.

Explore the adapter range Read selection guides

SC, LC, FC, ST, MPO and MTP interfaces

Hybrid, metal and panel-mount flange options

Waterproof adapters for exposed enclosures

Fiber optic adapters mounted in a patch panel and outdoor enclosure

MatchInterface and key

ConfirmSleeve and polish

VerifyLoss and end face

12Adapter types

6Connector interfaces

UPC & APCPolish options

LiveSearch-derived resources

Adapter library

Start from the Interface and the Mounting Style

Fix the connector interface and the panel cut-out first, then confirm sleeve material, polish, key orientation and sealing against the frame or enclosure you are fitting.

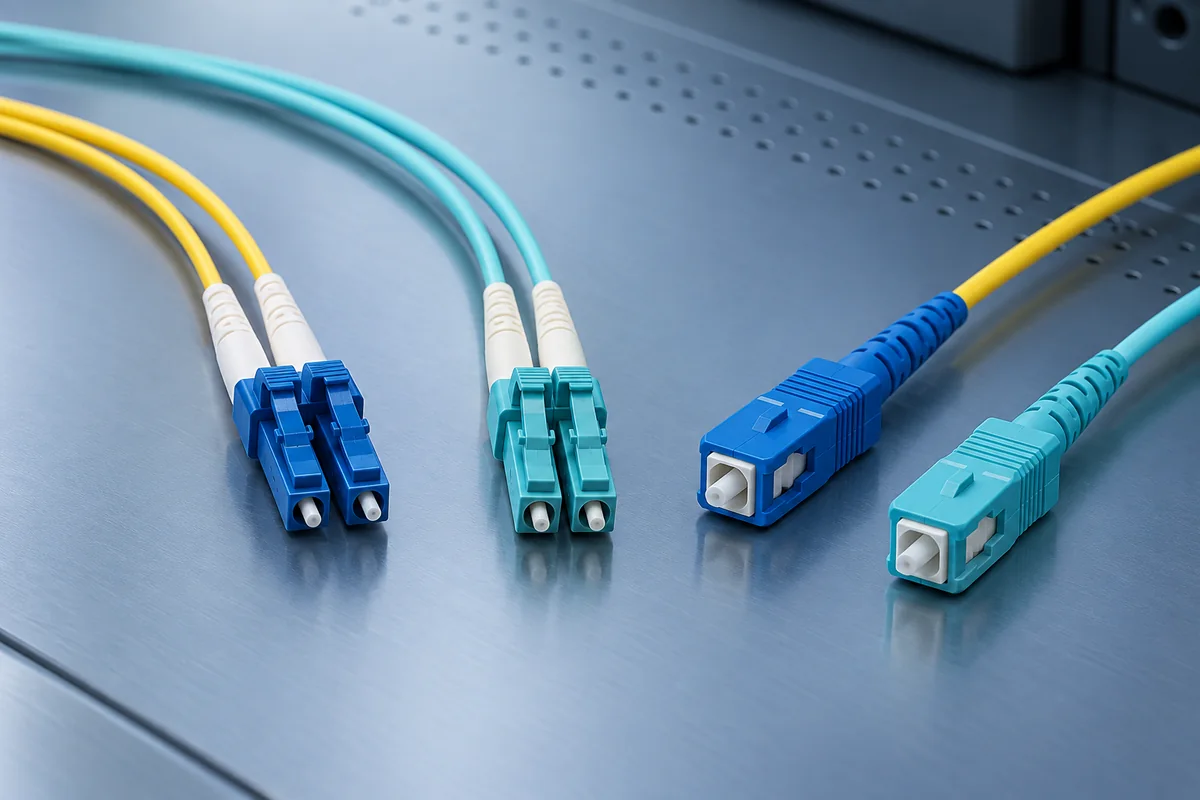

SC, LC, FC and ST fiber optic adapters and connectors

Connectivity

SC, LC, FC & ST Adapters

Simplex and duplex panel adapters with bronze or ceramic sleeves, plus dust caps, keys and mounting screws.

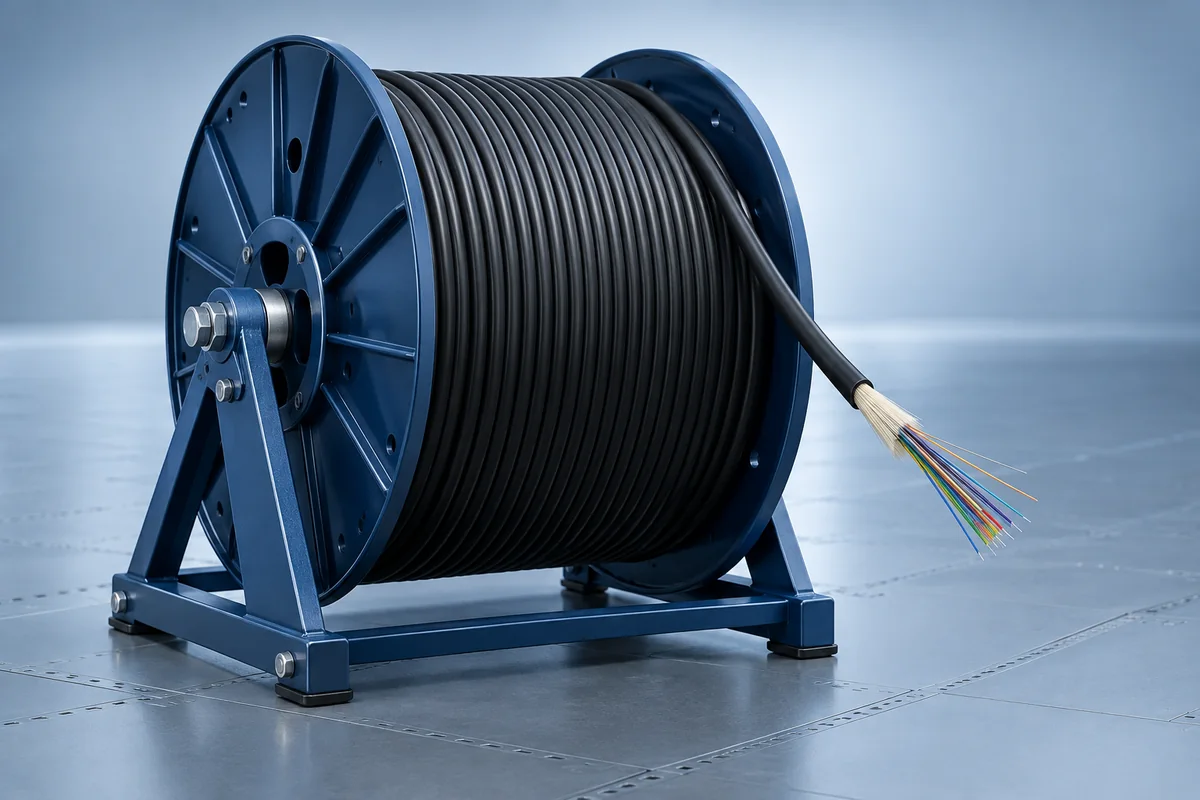

Fiber optic couplers and flanges with patch cords on reel

Panel hardware

Couplers & Flanges

Bulkhead couplers and screw-mount flanges for ODF frames, wall boxes and rack panels.

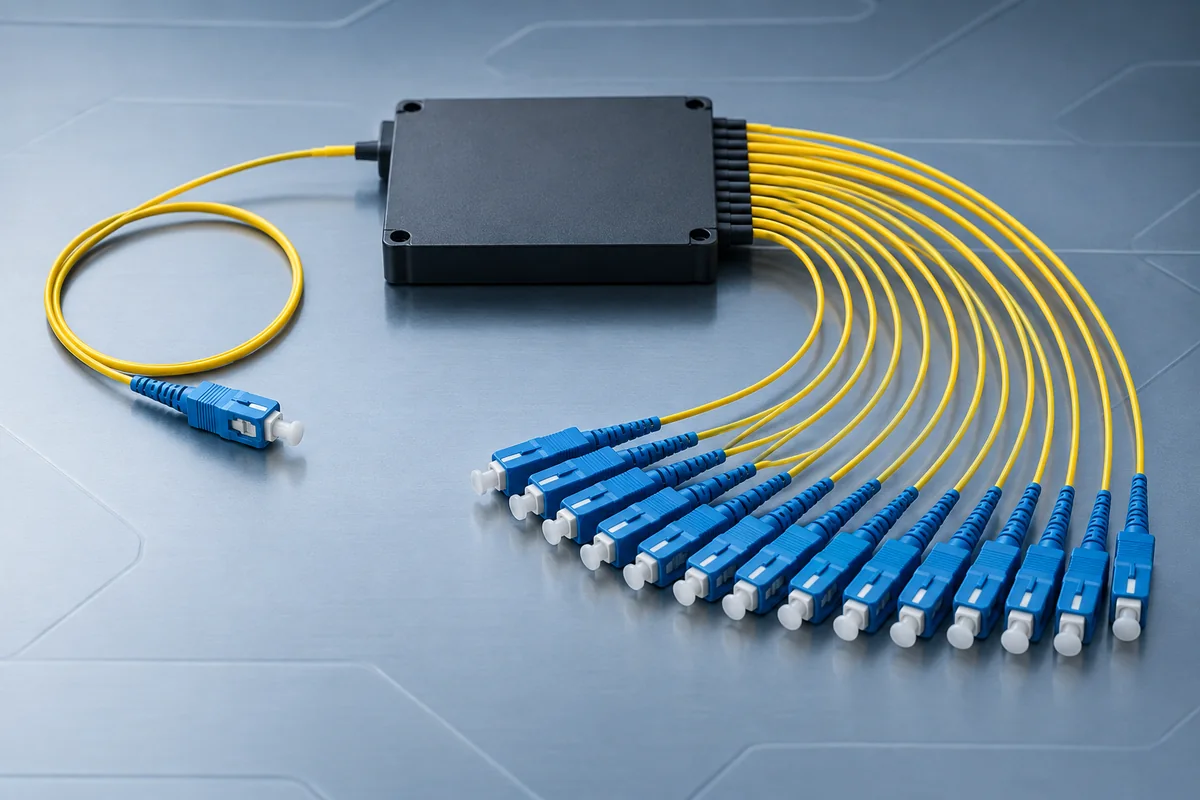

FTTH splitter enclosure with waterproof fiber optic adapters

FTTH & access

Drop & Waterproof Adapters

Sealed SC and LC adapters for subscriber entries, pole enclosures and outdoor cabinets.

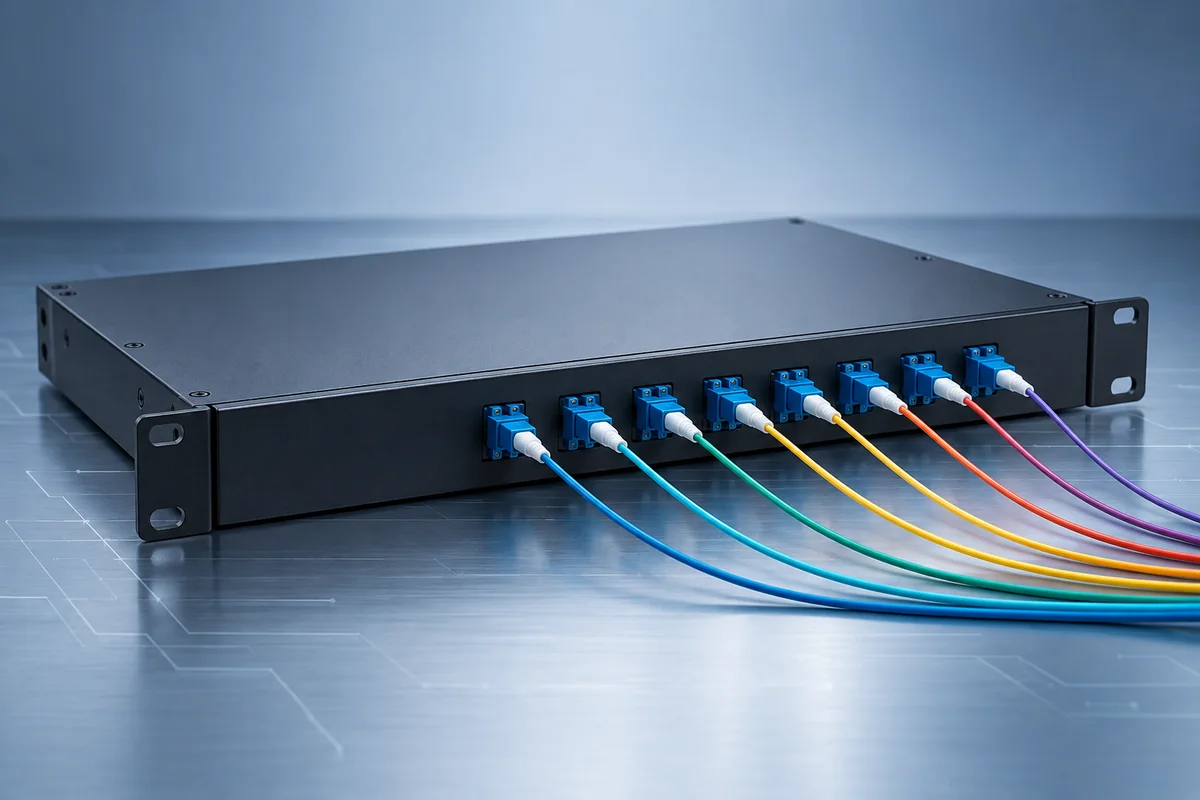

WDM multiplexer with MPO and MTP fiber optic adapters

High density

MPO & MTP Adapters

8, 12 and 24-fiber key-up and key-down adapters for parallel optics and backbone patching.

Adapter selection

Adapter Types by Interface, Housing and Environment

Each type answers one dominant requirement. Confirm the port and the panel first, then match sleeve, housing and sealing to it.

Fiber Optic Adapters

General-purpose panel adapters that align two ferrules and set the joint loss of the link.

SC Fiber Optic Adapters

2.5 mm ferrule with a square push-pull body for ODF frames, ONU and OLT ports.

LC Fiber Optic Adapters

1.25 mm ferrule in a compact housing for high-density panels and SFP or QSFP ports.

FC Fiber Optic Adapters

Threaded metal body for test gear, instruments and vibration-prone racks.

ST Fiber Optic Adapters

Bayonet-fit adapters for legacy frames, industrial panels and field devices.

MPO Fiber Optic Adapters

Multi-fiber arrays with key-up or key-down orientation for parallel optics.

MTP Fiber Optic Adapters

Refined multi-fiber housing that holds tighter alignment for lower insertion loss.

Fiber Optic Couplers

Alignment couplers for in-line joining, feed-through panels and test bench set-ups.

Fiber Optic Flanges

Panel-mount adapters with a mounting plate, screw holes or a rectangular cut-out.

Hybrid Fiber Optic Adapters

Mixed interfaces such as SC to LC or FC to SC for migration and test-lead conversion.

Metal Fiber Optic Adapters

Machined housings for heat, vibration and repeated mating cycles.

Waterproof Fiber Optic Adapters

Sealed bodies with gaskets for outdoor cabinets, towers and drop entry points.

A practical reference workflow

Move from panel requirement to a tested, labelled adapter position

An adapter only performs as well as the joint it holds. Connect interface choice with sleeve, key, polish and acceptance testing.

Define the position

Record connector interface, port count, panel thickness, cut-out size and the environment around the frame.

Match sleeve and polish

Pick ceramic or bronze sleeve, then confirm UPC or APC geometry and key orientation.

Check the loss budget

Add adapter insertion loss, return loss and cleaning allowance into the available link margin.

Test and label

Keep end-face inspection and loss records, then label every adapter position permanently.

View planning and test methods

Deployment environments

Where Adapter Choice Makes the Difference

Different environments prioritise density, interface type, mechanical survival, sealing or optical headroom.

Data Centres

LC and MPO adapters in high-density panels for dense, low-loss transceiver links.

FTTH & Access

Sealed SC and LC adapters for ODN enclosures, splitter boxes and subscriber entries.

Telecom Exchanges

SC and FC flanges on ODF frames, transmission gear and test patch panels.

Industrial & Outdoor

Metal and waterproof adapters with gaskets for cabinets, towers and exposed runs.

Broadcast & AV

Ruggedised panel adapters for camera, matrix and fiber extension links on site.

Power & Utilities

Non-metallic adapters around substations and switchyards where isolation matters.
