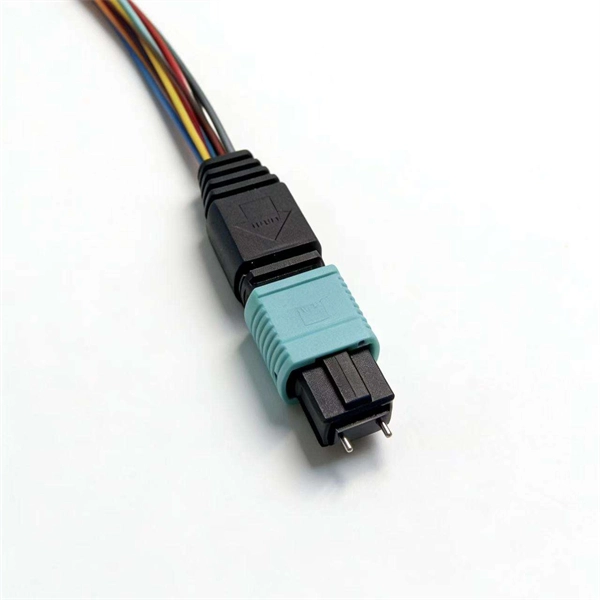

Fiber Optic Cable Crossing Techniques

Fiber optic cable crossing ensures proper transmit-to-receive alignment, using cross-over connections, patch panel management, and splicing techniques to maintain full-duplex communication.Cross-Over Connections

Fiber optic cross-over is necessary when the transmit (TX) and receive (RX) fibers are not aligned at both ends of a link. This occurs when cables are manufactured as straight-through, causing TX to connect to TX and RX to RX, which prevents proper communication ( ). To correct this, the fibers must be criss-crossed manually:

• Identify the fiber connectors and their orientation.
• Carefully remove the fibers from the holding bracket without bending them excessively.
• Swap the TX and RX fibers and reinsert them into the bracket, ensuring proper alignment and secure locking.
• Verify that both ends are correctly crossed to prevent confusion in larger panels. Using consistent numbering for fibers (e.g., odd fibers to TX, even fibers to RX) simplifies management and reduces errors ( ).

Fiber Cross-Connects

A fiber cross-connect is a network junction where fibers from different sources are interconnected to form a larger network ( ). Key components include:

• Fiber adapters: Connect fibers to the cross-connect panel.
• Cross-connect panels or modules: House adapters and allow interconnection.
• Fiber patch cords: Interconnect fibers within the panel.
• Optical switching equipment: Routes light signals without physical splicing. Cross-connects provide scalability, flexibility, and high-speed data transfer, and they can be reconfigured as networks grow. Proper installation requires planning for space, power, and environmental conditions.

Splicing Techniques

Fiber splicing is used to join two fiber cables to create a continuous optical path. The main methods are ( ):

• Fusion splicing: Melts and fuses fiber ends, producing a permanent, low-loss connection ideal for long-haul networks.
• Mechanical splicing: Aligns fibers in a junction without fusion, suitable for field repairs or temporary connections. Effective splicing requires precise fiber preparation, correct tools, and adherence to best practices to minimize signal loss and maintain network integrity.

Best Practices

• Always handle fibers carefully to avoid bending or breaking.
• Maintain consistent fiber numbering and polarity throughout the network.
• Verify cross-over connections and splices with testing equipment before finalizing.
• Use appropriate patch panels and adapters for high-density environments to simplify management. By combining cross-over connections, cross-connect panels, and proper splicing, fiber optic networks can achieve reliable, high-speed, and low-latency communication while minimizing errors and downtime ( ).
