A distribution box is a low-voltage electrical enclosure that safely distributes power from a main supply to multiple circuits while providing protection, isolation, and organized connections.Overview and Function

A distribution box (also called a DB box, distribution board, breaker box, or consumer unit) is a central hub in electrical systems that receives incoming power and distributes it to various branch circuits in residential, commercial, or industrial settings . Its main functions include:

  • Distribution: Splits incoming supply into multiple outgoing circuits.
  • Protection: Safeguards circuits using devices like MCBs, RCCBs, RCBOs, fuses, or surge protective devices.
  • Isolation: Allows disconnection of circuits for maintenance or emergencies.
  • Connection: Organizes live, neutral, and earth conductors.
  • Containment: Protects people from live parts and shields components from dust, moisture, and impact .

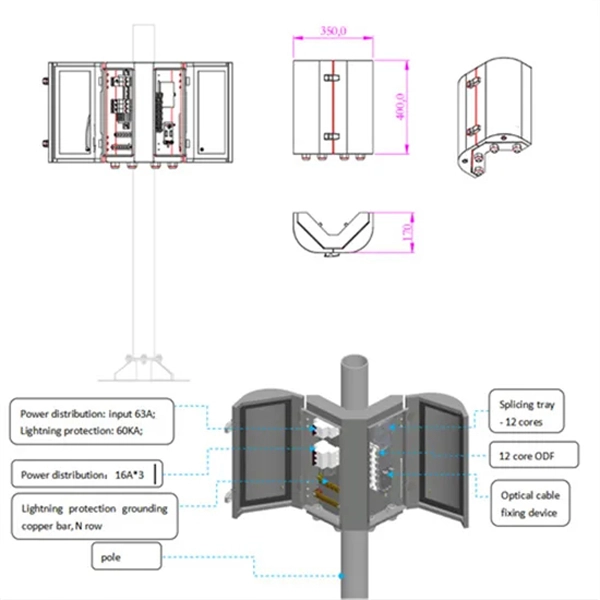

Key Components

A typical distribution box contains several essential components:

  • Main Switch/Isolator: Controls the overall power supply.
  • Miniature Circuit Breakers (MCBs): Protect individual circuits from overloads.
  • Residual Current Circuit Breakers (RCCBs/RCBOs): Detect leakage currents to prevent electric shocks.
  • Bus Bars: Metal strips that distribute electricity to multiple circuits.
  • Neutral and Earth Bars: Provide return paths and grounding for safety.
  • Fuses and Surge Protective Devices (SPDs): Protect against short circuits and voltage surges.
  • Enclosure: Made of thermoplastics (PC, ASA) or coated metals, providing mechanical protection and environmental resistance . Smart DB boxes may include energy monitoring units and communication modules for advanced building automation .
Types and Applications

Distribution boxes vary based on installation environment, material, and mounting:

  • Indoor vs Outdoor: Indoor boxes are for protected environments; outdoor boxes require higher IP ratings for dust, moisture, and UV resistance.
  • Material: Plastic boxes are lightweight and corrosion-resistant; metal boxes offer higher mechanical strength for industrial use.
  • Mounting: Wall-mounted for residential or light commercial use; floor-standing for larger industrial systems . They are widely used in homes, offices, factories, infrastructure projects, and renewable energy systems to ensure safe and organized power distribution .
Selection Criteria

Choosing the right distribution box involves considering:

  • Application: Residential, commercial, industrial, solar, or machinery.
  • Supply System: Single-phase, three-phase, AC/DC, and earthing type.
  • Number of Circuits: Current circuits plus spare ways for future expansion.
  • Protective Devices: MCB, RCCB, RCBO, fuses, SPDs, or isolators.
  • Rated Current and Short-Circuit Capacity: Based on actual load and fault current.
  • Internal Layout: Busbar type, neutral/earth bar arrangement, DIN rail space, wiring room, and heat dissipation.
  • Standards Compliance: IEC 61439, IEC 60670, UL/NEC, BS 7671, or local codes .
Difference from Other Boxes
  • Junction Box: Only houses wire connections; does not provide circuit protection.
  • Control Box: Tailored for specific machines or processes, often handling low to medium voltages.
  • Distribution Box: Handles main supply voltage (220–690V) and provides protection, isolation, and load management . A proper distribution box ensures safety, reliability, and efficient power management, making it a critical component in any electrical system.
