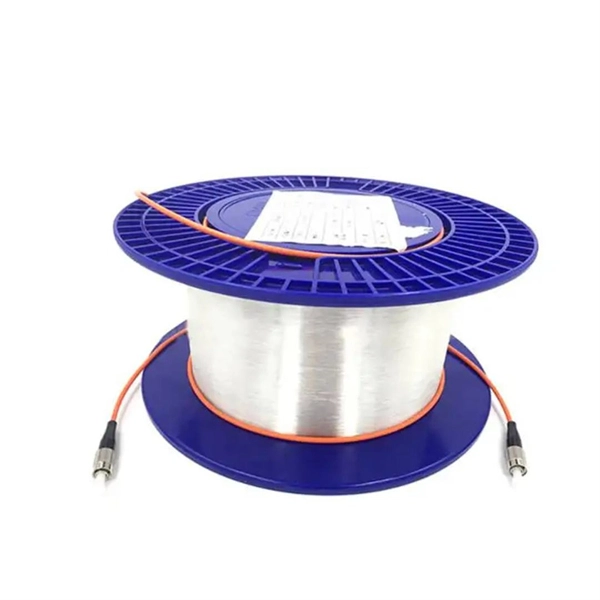

Dimensions of fiber optic cables

Fiber optic cables vary in size depending on core, cladding, buffer, and outer jacket dimensions, with single-mode cores around 9 µm and multimode cores ranging from 50 to 62.5 µm.Core and Cladding

The core is the central part of the fiber where light travels. Single-mode fibers have a core diameter of approximately 8–10 µm, allowing light to travel in a single path for long-distance, high-bandwidth transmission . Multimode fibers have larger cores, typically 50 µm, 62.5 µm, or 100 µm, which allow multiple light paths but are better suited for shorter distances due to higher signal attenuation . Surrounding the core is the cladding, which is standardized at 125 µm for both single-mode and multimode fibers. The cladding ensures total internal reflection, keeping light confined within the core .

Buffer Coating

The buffer coating protects the fiber from mechanical damage and environmental stress. Its size varies depending on the fiber type: tight-buffered fibers typically have a 250 µm coating for indoor applications, while loose-tube fibers used outdoors may have a 900 µm coating for added durability .

Outer Jacket

The outer jacket provides the final layer of protection and varies in diameter based on the application. Typical sizes range from 1.6 mm to 3.0 mm, with smaller diameters used for indoor or high-density installations and larger diameters for rugged outdoor environments .

Fiber Counts and Configurations

Fiber optic cables are often manufactured in multiples of 2 fibers, such as 6, 12, 24, 48, 72, or 144 fibers, depending on network requirements. Non-standard fiber counts can also be produced for specific applications .

Summary of Typical Sizes

• Single-mode core: 8–10 µm
• Multimode core: 50–62.5 µm (OM1, OM2, OM3, OM4)
• Cladding: 125 µm (standard)
• Buffer coating: 250 µm (tight-buffered) to 900 µm (loose-tube)
• Outer jacket: 1.6–3.0 mm These dimensions are critical for ensuring compatibility with connectors, minimizing signal loss, and optimizing performance for specific applications, whether in data centers, telecommunications, or FTTH installations .
