Drilling fiber optic cable

Horizontal Directional Drilling (HDD) is the preferred method for installing fiber optic cables underground with minimal surface disruption.What is Horizontal Directional Drilling (HDD)?

HDD is a trenchless technology that allows fiber optic cables to be installed underground without extensive excavation. A steerable drill creates a precise underground path, which is ideal for urban areas, road crossings, rivers, and environmentally sensitive zones . Unlike traditional trenching, HDD requires only small entry and exit points, reducing disruption to roads, sidewalks, and landscaping .

How HDD Works

1. Pilot Hole Drilling: A drilling rig creates a small borehole along a predetermined underground route. Advanced steering systems guide the drill head to avoid existing utilities and obstacles .
2. Reaming: The pilot hole is gradually enlarged using a reaming tool to accommodate the fiber optic conduit or microduct bundles .
3. Cable Installation: The fiber optic cable is attached to a pulling head and pulled through the reamed hole. For longer distances, fiber can be blown or jetted through the conduit using compressed air for faster installation .

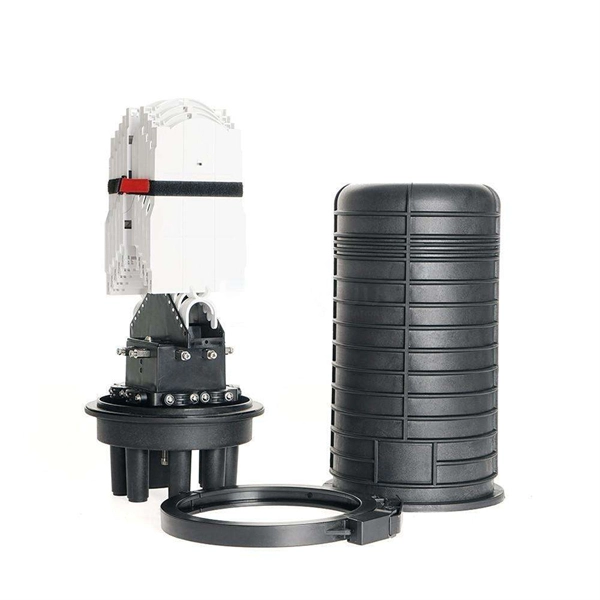

4. Splicing and Connections: Once installed, fiber sections are spliced together, and drops to homes or businesses are connected as needed .
5. Restoration: Any disturbed areas, such as entry and exit points, are restored with soil, grass, or concrete as required .

Advantages of HDD for Fiber Optics

• Minimal Surface Disruption: Reduces impact on roads, landscaping, and existing infrastructure .
• Faster Installation: Hundreds of feet of fiber can be installed per day, making it more efficient than open-cut trenching .
• Environmentally Friendly: Less soil disturbance protects sensitive ecosystems .
• Versatility: Suitable for urban, rural, and environmentally sensitive areas, as well as crossing obstacles like rivers or highways .
• Long-Term Cost Efficiency: Although initial costs may be higher, HDD reduces restoration and maintenance expenses over time .

Planning Considerations

• Ground Conditions: Soil type, rock, and clay density affect drilling effort and equipment choice .
• Location and Obstacles: Urban areas may require lane closures or adjusted working hours. Underground utilities must be located before drilling .
• Conduit Use: Fiber is typically installed in HDPE ducts or microduct bundles to protect against shifting soil, rodents, and future upgrades .
• Regulatory Compliance: Permits and local regulations may require extra conduits or specific burial depths, usually 1–1.2 meters (3–4 feet) to prevent accidental damage . HDD has become increasingly important due to federal broadband initiatives, such as the BEAD program, which prioritize fiber deployment and require efficient, minimally disruptive installation methods . This makes HDD a critical technology for expanding high-speed internet access in both urban and rural areas.
