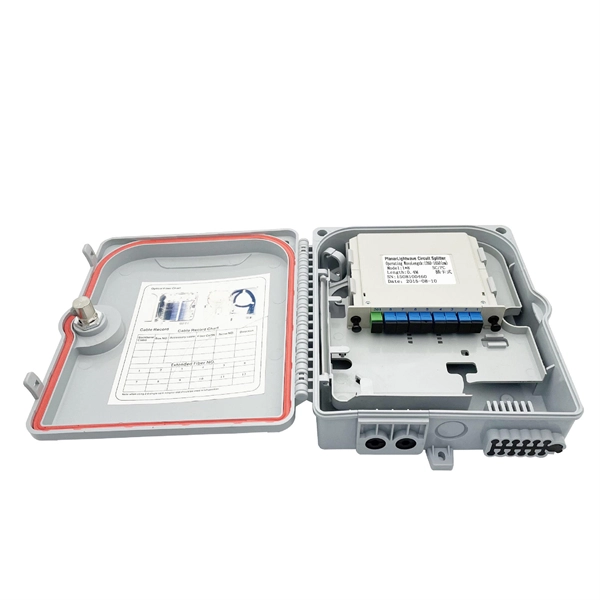

Fiber optic socket panel wiring terminals

Fiber optic adapter knowledge brief Published 01 Jun 2026

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

Fiber optic socket panels use adapters and pigtails to terminate incoming fiber cables, providing secure, organized connections for SC, LC, or ST connectors.Overview of Fiber Optic Socket Panels

A fiber optic socket panel (also called an optical termination outlet, FTTH outlet, or faceplate) serves as the endpoint for incoming fiber cables, connecting them to indoor devices like Optical Network Terminals (ONTs) or routers . Panels can be single-port, dual-port, or multi-port (4–8 ports) depending on network requirements . They are available in flush-mounted or surface-mounted designs, with back boxes to conceal slack fiber and splices .

Wiring Terminals and Connections
  1. Adapters: The panel contains adapters that hold fiber connectors securely. Common types include SC, LC, and FC, with simplex or duplex configurations . Adapters ensure proper alignment and minimal signal loss.
  2. Pigtails: Pre-terminated fiber pigtails link the incoming fiber to the panel adapters. The pigtail is spliced to the incoming fiber using fusion or mechanical splicing, providing a clean, low-loss connection .
  3. Back Box Management: The back box houses excess fiber, maintaining a minimum bend radius (typically ≥30mm) to prevent signal degradation . It also protects fibers from dust and physical damage.
  4. Faceplate: The faceplate snaps onto the back box, covering the adapters and pigtails while providing a neat, accessible interface for patch cords .
Installation and Wiring Tips
  • Strip and Clean Fiber: Strip the incoming fiber cable carefully and clean the fiber end with alcohol to avoid contamination .
  • Splicing: Fusion splice the incoming fiber to the pigtail inside the back box. Ensure proper alignment to minimize insertion loss.
  • Adapter Connection: Insert the pigtail connector into the panel adapter (SC/APC, LC, etc.) ensuring a secure fit.
  • Cable Routing: Coil excess fiber inside the back box without exceeding the bend radius. Multiple entry points allow flexible routing from different angles .
  • Dust Protection: Cap unused ports immediately to prevent contamination and maintain signal quality .
Key Considerations
  • Connector Type: Use APC connectors for GPON networks to reduce reflection loss (-60dB) and UPC connectors for general LAN applications (-50dB), .
  • Panel Capacity: Choose single, dual, or multi-port panels based on the number of services or devices.
  • Safety: Fiber optic cables carry laser light; always wear safety glasses and avoid direct eye exposure . Using a high-quality fiber optic socket panel ensures reliable, dust-proof, and low-loss connections, making it essential for both residential and commercial FTTH deployments .
