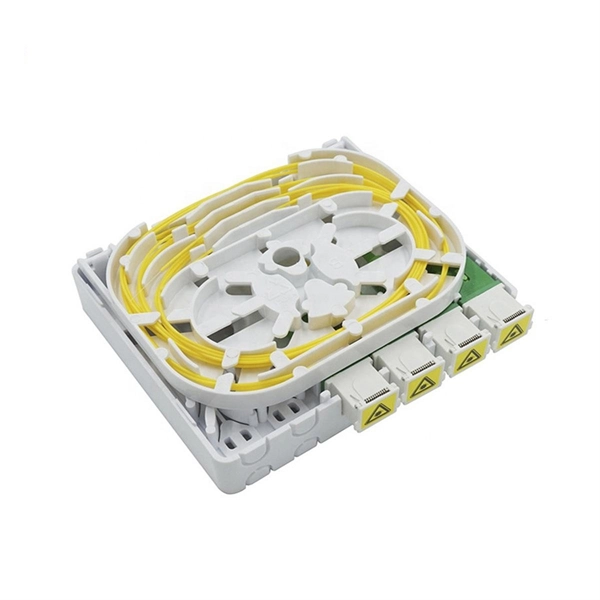

Detection of Fiber Optic Connection Loss

Fiber optic connection loss can be detected using optical loss measurements, OTDR testing, and visual fault locators to identify signal degradation or breaks in the fiber link.Understanding Fiber Optic Loss

Fiber optic loss, or optical attenuation, is the reduction of light signal power as it travels through a fiber. Loss occurs due to intrinsic factors like absorption, scattering, and dispersion within the fiber material, and extrinsic factors such as connector loss, splicing loss, and bending of the fiber . Total link loss is expressed in decibels (dB) and must remain within the system's optical power budget, which is determined by the transmitter output and receiver sensitivity . Exceeding this budget can lead to degraded network performance or complete signal loss.

Methods for Detecting Connection Loss

1. Optical Loss Test Sets (OLTS) OLTS measure the total light loss across a fiber link, simulating real network conditions. By comparing measured loss to the calculated loss budget, technicians can determine if the fiber is performing within acceptable limits .
2. Optical Time-Domain Reflectometer (OTDR) OTDRs send pulses of light down the fiber and analyze reflected signals to detect faults, bends, splices, and breaks. OTDR testing provides a detailed map of the fiber, showing the location and magnitude of losses along the link .
3. Visual Fault Locators (VFL) VFLs use visible red light to identify physical breaks, cracks, or tight bends in the fiber. This method is effective for short-distance troubleshooting and pinpointing visible faults .
4. Fiber Inspection Probes These magnify the fiber end-face to detect dirt, debris, or connector damage, which can contribute to connection loss .

Calculating and Monitoring Loss

Total link loss can be estimated using the formula: Total Link Loss = Cable Attenuation + Connector Loss + Splice Loss .

• Cable attenuation depends on fiber type and length (e.g., single-mode fiber ~0.5 dB/km at 1310 nm).
• Connector loss is typically 0.3–0.75 dB per connector depending on type.
• Splice loss is around 0.15–0.3 dB per splice. Comparing measured loss to the loss budget allows technicians to detect abnormal attenuation that may indicate a connection problem .

Standards and Best Practices

Fiber optic testing should follow TIA/EIA, IEC, and ISO standards to ensure consistency and reliability . Regular testing, proper installation, and monitoring of loss trends help prevent unexpected connection failures and maintain network integrity. By combining these methods—OLTS, OTDR, VFL, and inspection probes—technicians can effectively detect, locate, and troubleshoot fiber optic connection loss, ensuring optimal network performance.
