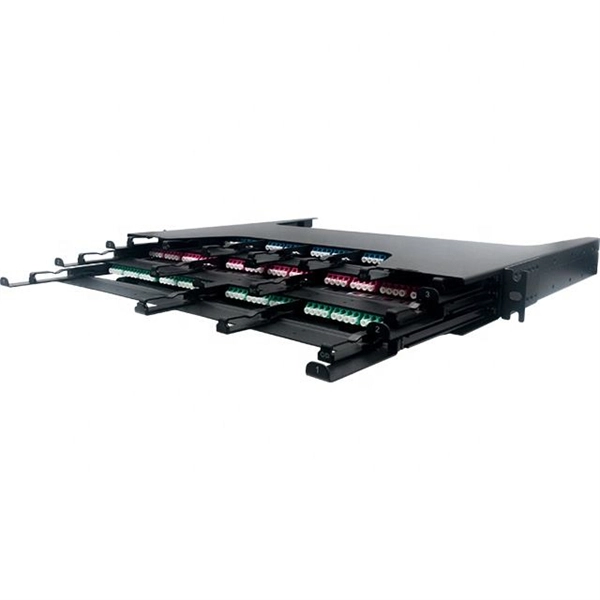

Aerial fiber optic distribution frame

Fiber optic adapter knowledge brief Published 09 Oct 2023

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

An aerial fiber optic distribution frame (ODF) is an outdoor enclosure that organizes, protects, and distributes fiber optic cables in aerial or harsh environments.Overview

An aerial fiber optic distribution frame is a specialized ODF designed for outdoor deployment, typically mounted on poles or aerial structures. It serves as a central point for fiber splicing, termination, storage, and distribution, ensuring that fibers are organized, protected from environmental stress, and easily accessible for maintenance or network expansion . Unlike indoor ODFs, aerial frames are engineered to withstand weather, UV exposure, moisture, and mechanical stress.

Key Functions
  • Splicing and Termination: Fibers from trunk cables are terminated and spliced to distribution fibers using fusion or mechanical splicing, with splices protected in trays .
  • Fiber Storage and Management: Provides slack storage and bend-radius compliance to prevent signal loss and physical damage .
  • Distribution and Routing: Directs fibers to drop cables or network access points, supporting FTTH (Fiber to the Home) and other broadband deployments .
  • Protection: Enclosures are sealed to prevent dust, moisture, and mechanical damage, often using gel or mechanical sealing for outdoor conditions .
Components
  • ODU/ODF Sub-Racks: Modular units for integrated or separated splicing and termination, allowing flexible network design .
  • Splice Trays: Organize and protect fiber splices, maintaining proper bend radius.
  • Splitter Sub-Racks: Optional modules for splitting optical signals in FTTH networks.
  • Fiber Termination Boxes: Compact boxes at the final customer premises for secure fiber termination.
  • Connectors and Patch Cords: Supports various types such as LC, SC, ST, FC, E2000, and DIN for flexible connectivity .
Applications
  • FTTH Networks: Connects main distribution cables to individual subscriber lines.
  • Outdoor and Harsh Environments: Suitable for aerial, duct, buried, or manhole installations.
  • Network Access Points: Provides a protected interface between distribution and drop cables, simplifying maintenance and upgrades .
Advantages
  • High Capacity: Supports large numbers of fibers in a compact, organized structure.
  • Low Insertion Loss: Maintains signal quality through proper splicing and routing.
  • Durability: Designed for long life cycles in outdoor conditions.
  • Ease of Maintenance: Modular design allows technicians to access and reconfigure fibers without disrupting the network . In summary, an aerial fiber optic distribution frame is essential for managing outdoor fiber networks efficiently, providing protection, organization, and scalability for high-density fiber deployments in challenging environments.
