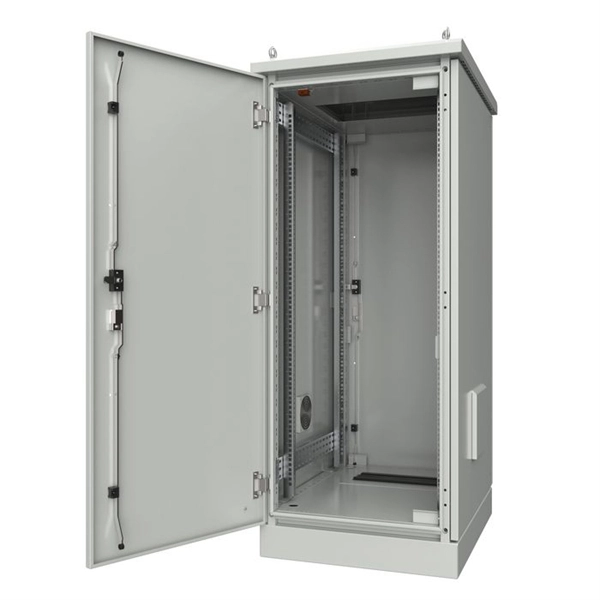

6 incoming lines to the distribution box

A distribution box with six incoming lines typically involves a three-phase system with dual sources or multiple feeders, requiring careful phase, neutral, and ground management for safe and reliable operation.

In a standard three-phase distribution system, each incoming line usually consists of:

• Three phase lines (A, B, C): Carry the main current from the power source to the distribution box. These are often color-coded yellow, green, and red for identification ( ).
• One neutral line: Provides the return path for unbalanced loads and stabilizes the system. Typically colored blue ( ).
• One ground line: Ensures safety by providing a path to earth in case of faults, usually yellow-green striped ( ).

With six incoming lines, the configuration often represents two separate three-phase sources feeding the same distribution box. This can be for:

• Dual power supply: One line set from the main utility and another from a backup generator or secondary utility source ( ).
• Redundant feeders: To increase reliability in critical installations, allowing automatic switching if one source fails ( ).

1. Circuit Breaker Configuration: Each incoming line should be connected through a properly rated circuit breaker to protect the distribution box and downstream loads ( ).
2. Dual Power Switch or Transfer Switch: If using two sources, a dual power switch ensures automatic or manual switching between sources during outages ( ).
3. Phase Balancing: Ensure that loads are evenly distributed across all phases to prevent overloading and voltage imbalance ( ).
4. Proper Labeling and Color Coding: Maintain standard color codes for phases, neutral, and ground to ensure safety and ease of maintenance ( ).
5. Compliance with Standards: Follow local electrical codes for spacing, grounding, and protection devices to ensure safety and reliability ( ).

• Verify that the incoming cables are rated for the expected load and distance to prevent voltage drop or overheating ( ).
• Consider surge protection and isolation devices if the distribution box serves sensitive equipment ( ).
• Regularly inspect connections and protective devices to maintain system integrity, especially in dual-source setups ( ).

By carefully managing the six incoming lines with proper breakers, grounding, and phase balancing, the distribution box can safely handle multiple power sources while ensuring reliable operation for all connected loads.
