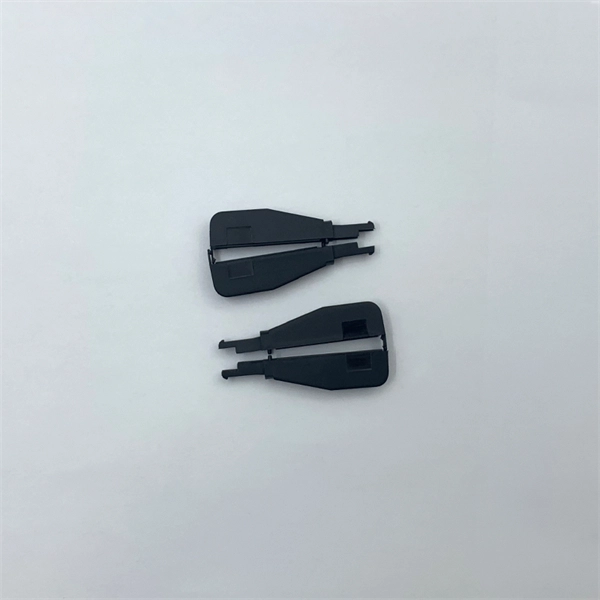

Base Station Fiber Optic Cable Splicing Method

A reliable base station fiber optic splicing solution combines fusion splicing for permanent low-loss connections with protective splice modules and adherence to industry standards for durability and performance.Splicing Methods

Fusion Splicing: This is the preferred method for base station fiber connections due to its low insertion loss (typically 0.02–0.1 dB) and long-term reliability. The process involves stripping the fiber jacket, cleaning, cleaving the fiber ends, aligning them in a fusion splicer, and applying an electric arc to fuse the fibers into a continuous optical path. The splice is then protected with a heat-shrink sleeve to prevent contamination and mechanical stress . Mechanical Splicing: Suitable for temporary repairs or quick field deployments, mechanical splicing aligns fibers using precision guides and index-matching gel without heat. It is faster and requires minimal tools but generally has higher insertion loss (~0.3 dB) and is less durable than fusion splicing .

Splice Modules and Protection

Splice Modules: These housings organize and protect spliced fibers, ensuring minimal signal loss and easy maintenance. A typical module includes a robust housing, splice holders, fiber guides, and strain reliefs. High-quality modules maintain attenuation losses below 0.1 dB and protect fibers from moisture, dust, and mechanical stress . Protection Sleeves: Single-fiber sleeves (40–60 mm) and ribbon fiber sleeves (supporting 4–12 fibers) provide mechanical strength and environmental protection. They comply with standards such as Telcordia TA-NWT-001380 and ISO 9001, ensuring durability under temperature cycling, humidity, and mechanical stress .

Tools and Equipment

• Fusion Splicers: Devices like Fujikura FSM-70S (single fiber) or Sumitomo Quantum Q101-M12 (mass fusion) provide precise alignment and low-loss splicing for single-mode or multi-fiber cables .
• Fiber Cleavers and Cleaning Kits: Ensure perpendicular, clean fiber ends to minimize splice loss.
• Microscopes and Inspection Tools: Verify cleave quality and alignment before splicing .

Best Practices

1. Fiber Preparation: Strip, clean, and cleave fibers carefully to avoid contamination or angular deviations.
2. Alignment Accuracy: Use automated or manual alignment in fusion splicers to ensure minimal insertion loss.
3. Environmental Protection: Install splices in modules or closures rated for IP68 or equivalent to withstand harsh conditions.
4. Testing: Measure splice loss and reflectance to confirm quality before network integration.
5. Documentation: Record splice locations, fiber counts, and test results for maintenance and troubleshooting .

Standards Compliance

Ensure splicing and protective solutions comply with ITU-T G.652, TIA-568.3-D, IEC 61300, and Telcordia GR-771-Core standards. This guarantees long-term performance, low attenuation, and environmental resilience for base station networks . By combining fusion splicing, protective splice modules, and adherence to standards, base stations can achieve highly reliable, low-loss fiber connections that support long-term network performance and scalability.
