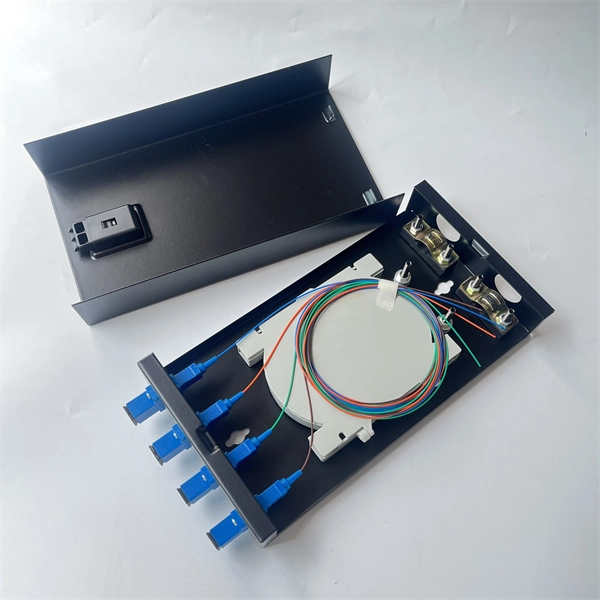

How to connect a 2-core fiber optic connector jack

Connecting a 2-core fiber optic connector jack requires careful preparation, precise alignment, and proper testing to ensure optimal signal transmission.Step 1: Identify Connector Type and Equipment

Determine the type of 2-core (duplex) connector you are using, such as LC duplex, SC duplex, or MPO. Duplex connectors have two fibers in a single housing, often color-coded for transmit (Tx) and receive (Rx) channels. Ensure you have the appropriate adapter or mating sleeve for the connector type, which aligns the ferrules of the two fibers for proper optical contact .

Step 2: Prepare the Fiber Cable

• Strip the outer jacket carefully using a fiber optic stripping tool to expose the two inner fibers .
• Clean the fiber ends with a specialized fiber cleaning solution and lint-free wipes or cleaning rods to remove dust and contaminants .
• Inspect the fiber ends under a microscope to ensure they are free of scratches or debris, which can cause signal loss .

Step 3: Align and Insert the Fibers

• For duplex connectors, ensure each fiber is correctly oriented according to Tx and Rx markings.
• Insert the ferrules into the adapter or mating sleeve, which may be ceramic or phosphor bronze, ensuring the fibers are aligned precisely .
• Depending on the connector type, secure the connection using the locking mechanism: push-pull for SC, twist-on for ST, or snap-in for LC .

Step 4: Secure the Connection

• If using field-attachable connectors, you may need to apply epoxy or mechanical splice to stabilize the fibers .
• For pre-terminated connectors, simply ensure the connector clicks or locks into place and that the duplex clip is properly seated.

Step 5: Test the Connection

• Use an optical power meter or Optical Time Domain Reflectometer (OTDR) to verify signal strength and check for losses or reflections .
• Confirm that the Tx and Rx channels are correctly matched to avoid cross-talk or signal errors.

Step 6: Cable Management

• Route the duplex cable carefully, avoiding sharp bends that exceed the minimum bend radius.
• Use velcro straps or cable managers to secure excess cable and prevent tension on the fibers . By following these steps, you can ensure a reliable and high-performance connection for a 2-core fiber optic connector jack, minimizing signal loss and maintaining network integrity.
