Multimode pigtail test

A multimode pigtail test evaluates the performance of multimode fiber optic pigtails, ensuring low insertion loss, proper splicing, and compliance with IEC or TIA standards.What is a Multimode Pigtail?

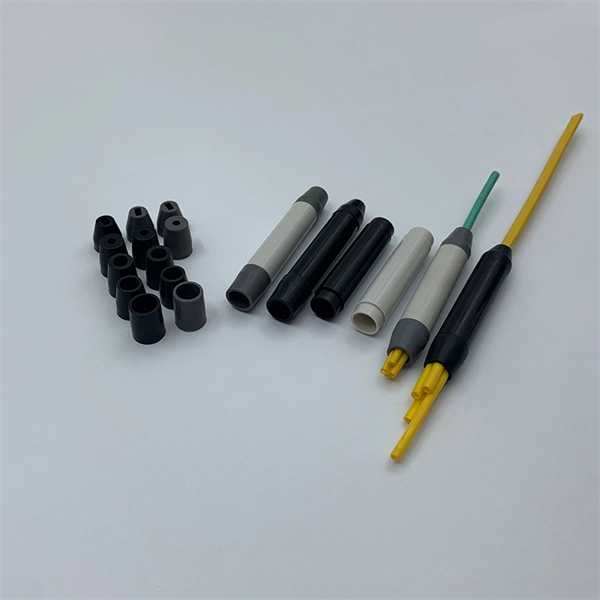

A multimode fiber optic pigtail is a short fiber cable, typically 0.5–2 meters, with a factory-installed connector on one end and bare fiber on the other end for splicing into a trunk or distribution cable . Common multimode types include OM1, OM2, OM3, OM4, and OM5, with OM3/OM4 being widely used in data centers and enterprise LANs . The connector end is polished and tested at the factory, while the bare end is prepared for fusion or mechanical splicing.

Purpose of Testing

Testing ensures that the pigtail:

• Meets insertion loss and return loss specifications
• Is properly spliced to the main fiber without excessive loss
• Complies with industry standards such as IEC 61753-022-02:2026 for controlled environments
• Functions reliably in high-speed networks, including 10G multimode applications

Testing Standards

• IEC 61753-022-02:2026 defines minimum initial test and measurement requirements for multimode pigtails and patch cords, including visual inspection, insertion loss, and environmental stress tests like temperature cycling and flexing .
• TIA-568-C provides guidance for testing multimode trunk cables and pigtails, often using a 1-jumper or 3-jumper reference method to ensure accurate insertion loss measurements .

Typical Test Procedures

1. Visual Inspection: Check the connector end for dirt, scratches, or defects using a fiber scope. Clean and inspect before testing .
2. Insertion Loss Measurement: Connect the pigtail to a reference test cord and measure loss using an optical power meter or OTDR. For multimode fibers, 850 nm and 1300 nm wavelengths are standard .
3. Return Loss Measurement: Verify that the connector polish type (PC, UPC, or APC) meets return loss requirements. Multimode pigtails typically use PC or UPC polish .
4. Splice Verification: After fusion splicing the bare end to a trunk fiber, measure the splice loss to ensure it is within acceptable limits.
5. Environmental Stress Tests: Optional tests include flexing, temperature cycling, and cable retention to simulate real-world conditions, as specified in IEC 61753-022-02 .

Best Practices

• Always clean and inspect fiber end-faces before testing. Dirty connectors are the leading cause of high-loss splices .
• Use factory-terminated connectors to ensure consistent performance. Field-terminated connectors are less reliable .
• Match the fiber type and buffer diameter to the splice tray or closure to avoid mechanical stress .
• Document all test results for compliance and troubleshooting purposes. By following these procedures, multimode pigtail testing ensures high-performance, reliable fiber connections suitable for enterprise, data center, and controlled environment applications.
