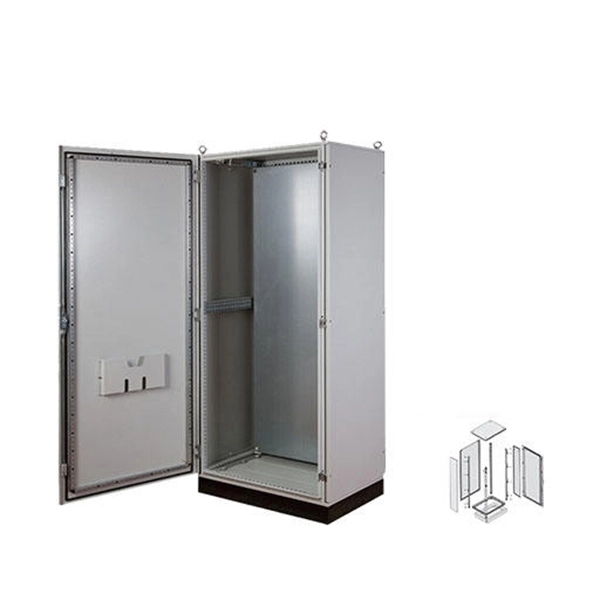

Large electrical distribution boxes are robust enclosures designed to safely distribute power to multiple circuits in residential, commercial, and industrial settings, often incorporating advanced safety and monitoring features.Overview
Large electrical distribution boxes, also known as DB boxes or panel boards, serve as the central hub for electrical power distribution. They receive incoming power and distribute it to multiple outgoing circuits while protecting the system from overloads, short circuits, and electrical faults through devices like MCBs, MCCBs, RCDs, RCBOs, fuses, and surge protective devices . These boxes are essential for maintaining safety, organization, and efficient power management in buildings and industrial facilities .
Components
Key components of large distribution boxes include:
- Circuit breakers (MCB, MCCB): Protect circuits from overload and short circuits.
- RCDs/RCBOs: Provide earth fault protection.
- Busbars: Conduct electricity to multiple circuits.
- Neutral and earth bars: Ensure proper grounding and neutral connections.
- Surge protective devices (SPD): Protect against voltage spikes.
- DIN rails and wiring space: Facilitate modular installation and maintenance . Advanced or smart DB boxes may also include energy monitoring units, communication modules, and integration with building automation systems for real-time data collection and remote control .
Materials and Construction
Large distribution boxes are constructed from durable materials such as thermoplastics (PC, ASA), powder-coated steel, or epoxy-coated stainless steel to ensure impact resistance, corrosion protection, and longevity . They are designed for indoor and outdoor use, with IP-rated enclosures to protect against dust and moisture .
Applications
These boxes are used in:
- Residential buildings: Managing multiple circuits safely.
- Commercial spaces: Office buildings, retail centers, and factories.
- Industrial facilities: Powering machinery, data centers, and communication hubs . Specialized series, such as the PDX/TSP and XL-21, are tailored for high-power consumers and advanced power management, including multimedia and metering applications .
Selection Considerations
When selecting a large distribution box, consider:
- Application type: Residential, commercial, industrial, outdoor, or temporary power.
- Supply system: Single-phase, three-phase, AC/DC, and earthing system.
- Number of outgoing circuits: Include spare ways for future expansion.
- Protective-device strategy: MCB, MCCB, RCD, RCBO, SPD, or main breaker.
- Rated current and short-circuit capacity: Match actual load and fault current.
- Internal layout and ventilation: Ensure accessibility for maintenance and heat dissipation.
- Compliance with standards: IEC 61439, UL/NEC, BS 7671, or local codes .
Advantages
- Safety: Protects circuits and prevents electrical hazards.
- Flexibility: Modular designs allow easy expansion and integration.
- Efficiency: Supports centralized or decentralized power distribution.
- Smart integration: Enables energy monitoring and automation for modern buildings . Large electrical distribution boxes are therefore critical for reliable, safe, and efficient power management, especially in environments with high power demands or complex electrical systems.
