Where is the SC interface of the fiber optic coupler

Fiber optic adapter knowledge brief Published 27 Nov 2021

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

The SC interface of a fiber optic coupler is the port where an SC-terminated fiber connector plugs in, featuring a 2.5 mm ferrule and a square push-pull housing.Location and Identification

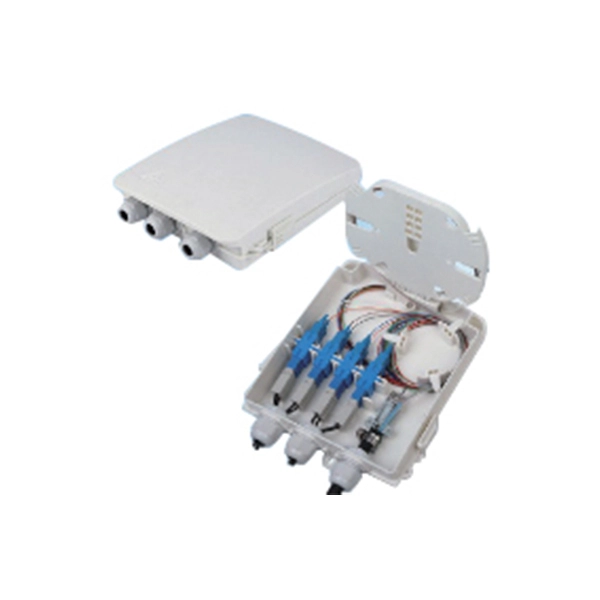

The SC interface is typically located on the coupler's front panel or adapter panel, designed to accept SC connectors. It is a square-shaped port with a push-pull mechanism that securely locks the SC connector in place, ensuring proper alignment of the fiber cores for low-loss optical transmission . On duplex couplers, there are usually two SC interfaces side by side, often marked for transmit (TX) and receive (RX) channels.

Connector Specifications
  • Ferrule Size: 2.5 mm, larger than LC connectors, making it easier to handle and clean .
  • Polish Types: SC interfaces can accept UPC (Ultra Physical Contact) or APC (Angled Physical Contact) connectors, with APC typically used in PON networks to reduce back-reflection .
  • Standards: The SC interface conforms to IEC 61754-4 and TIA-604-3, with end-face geometry defined in IEC 61755-3-1 .
Practical Considerations
  • Ensure the SC connector is fully inserted until the snap-in latch clicks, confirming proper engagement.
  • Avoid mixing SC/UPC and SC/APC connectors on the same coupler, as this can cause high insertion loss and potential damage to the ferrule end-face .
  • SC interfaces are commonly used in FTTH, CATV, PON, and enterprise networks, and remain standard for outdoor and legacy installations due to their robustness . In summary, the SC interface on a fiber optic coupler is the square port designed for SC connectors, located on the coupler's front or adapter panel, and follows standardized dimensions and polishing types to ensure reliable optical connections .
