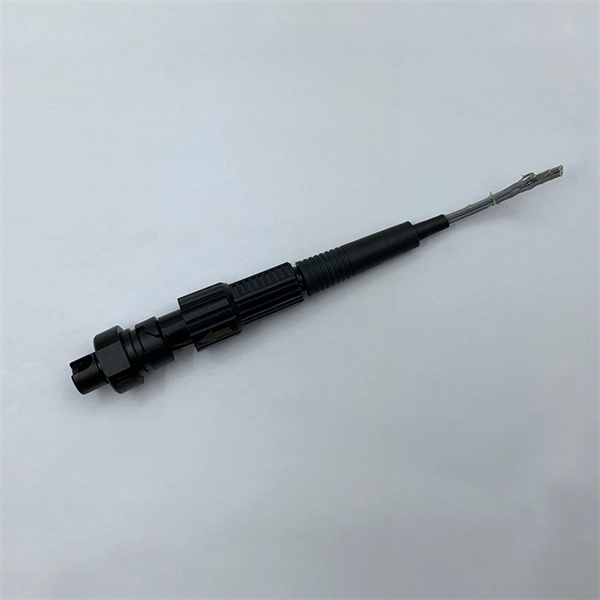

Glass fiber tail bare fiber tail

A bare fiber tail is an exposed optical fiber used for splicing or testing, while a glass fiber tail in composites refers to glass fibers integrated with resin for structural applications.Bare Fiber Tail in Optical Applications

A bare fiber tail is a section of optical fiber stripped of its protective coating, exposing the glass core and cladding for direct use in splicing, testing, or connecting to fiber optic transceivers . These fibers are classified into:

• Single-mode fibers (SMF): Core diameter 8–10 microns, optimized for long-distance communication at wavelengths like 1310 nm or 1550 nm .
• Multimode fibers (MMF): Core diameter 50–62.5 microns, suitable for shorter distances, often operating at 850 nm . Tail fibers are typically used in patch cords or fiber optic termination boxes, with one end connectorized and the other end prepared for fusion splicing. They can be single-core or multi-core (4, 6, 8, 12, 24 cores), depending on the network requirements . The numerical aperture (NA) and wavelength compatibility are critical for ensuring efficient light transmission and minimal signal loss .

Glass Fiber Tail in Structural Composites

In structural applications, such as aircraft tail fins, a glass fiber tail refers to bundles of glass fibers combined with resin to form a composite material . Key points include:

• Material properties: Glass fibers offer high tensile strength, high modulus, corrosion resistance, and low density (about one-quarter of steel), making them ideal for lightweight, strong structures .
• Composite formation: Resin impregnates the glass fiber bundles, binding them into a continuous, load-bearing structure. This process enhances impact resistance and prevents local stress failures .
• Performance synergy: The combination of glass fiber and resin achieves a "1+1>2" effect, where the resin protects fibers from environmental damage and evenly distributes mechanical loads .

Summary

• Bare fiber tail: Exposed optical fiber for splicing, testing, or connecting in telecommunications; available in single-mode or multimode types with specific core diameters and wavelength compatibility .
• Glass fiber tail (composite): Glass fibers integrated with resin to form strong, lightweight structural components, commonly used in aerospace applications like tail fins . Understanding the distinction between these two uses is essential: one is functional in optical signal transmission, while the other is structural in composite engineering.
