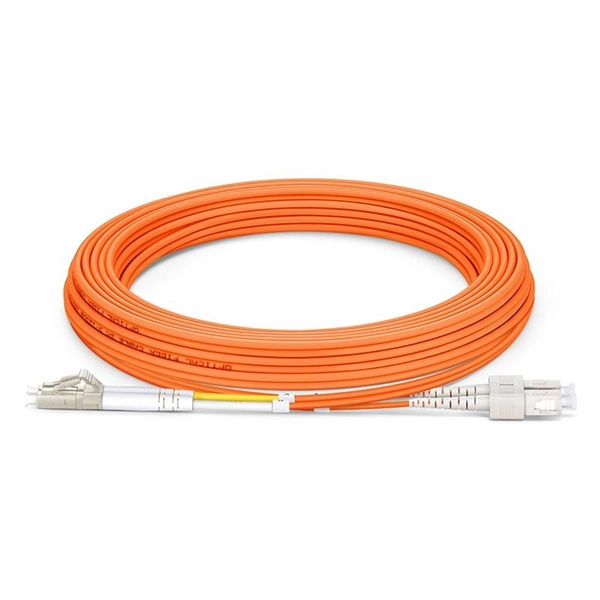

Wiring Method for Fiber Optic Couplers

Fiber optic couplers are wired by aligning the fiber connectors into the coupler's alignment sleeve, securing them, and testing for minimal insertion loss and proper signal distribution.Understanding Fiber Optic Couplers

A fiber optic coupler is a passive device that connects two or more optical fibers, allowing light to be split, combined, or redirected between fibers with minimal loss . Couplers can be simplex, duplex, quad, or hybrid, depending on the number of fibers and connector types involved . Common applications include signal splitting in fiber lasers, combining inputs in interferometers, or distributing signals in telecommunications networks .

Wiring and Connection Steps

1. Prepare the Fiber Ends: Clean the fiber connectors using lint-free wipes and fiber optic cleaning solution to remove dust or debris. Proper cleaning prevents signal loss and back reflections .
2. Align the Connectors: Insert the fiber connectors into the coupler's alignment sleeve. The ferrules inside the connectors must be precisely aligned to ensure the fiber cores are centered, allowing efficient light transmission . For directional couplers, the fibers may be fused or brought close together to enable evanescent wave coupling .
3. Secure the Connection: Push the connectors firmly into the coupler. Some adapters have latches or screws to lock the connectors in place, ensuring stable mechanical and optical contact .
4. Test the Connection: Use a fiber optic power meter or optical time-domain reflectometer (OTDR) to measure insertion loss, coupling ratio, and uniformity. Proper testing ensures that the coupler distributes or combines light as intended and that losses are within acceptable limits .

Considerations for Optimal Wiring

• Connector Compatibility: Match the coupler to the connector types in your system (e.g., LC, SC, ST, FC, MPO/MTP). Hybrid couplers allow connections between different connector types .
• Fiber Mode: Ensure the coupler supports the fiber mode (single-mode or multi-mode) used in your network .
• Coupling Ratio: For splitters, verify the desired power distribution between output ports. Directional couplers may have specific ratios like 50:50 or 90:10 .
• Minimizing Loss: Avoid bending fibers sharply near the coupler, maintain clean end faces, and ensure precise alignment to reduce insertion loss and back reflections .

Advanced Wiring Techniques

For high-power or multi-input applications, fibers may be fused or tapered in the coupling region to achieve precise evanescent wave coupling. Dichroic or wavelength division couplers can combine or separate signals of different wavelengths . In such cases, careful control of fiber positioning and fusion parameters is critical to maintain uniformity and minimize polarization-dependent loss . By following these wiring methods and best practices, fiber optic couplers can be installed to provide reliable, low-loss connections suitable for telecommunications, data centers, and fiber laser systems .
