Fiber optic patch panels between server racks

Fiber optic patch panels organize, protect, and manage fiber connections in server racks, offering scalable port densities, multiple connector types, and efficient cable management for data centers and enterprise networks.Overview

Fiber optic patch panels are essential components in data centers, server rooms, and telecommunications closets, providing a structured and organized way to interconnect backbone cables with active equipment while protecting delicate fiber connections and simplifying maintenance . They are typically rack-mounted in standard 19-inch frames and come in various sizes, including 1U, 2U, 3U, and 4U, depending on port density and application needs .

Types and Configurations

• Port Density: Panels range from 12 to 144 ports per rack unit, with high-density options like UHDX panels supporting up to 144 LC fibers per RU and HDX panels supporting up to 96 LC fibers per RU . Standard panels often come in 16, 24, 48, or 96 ports .

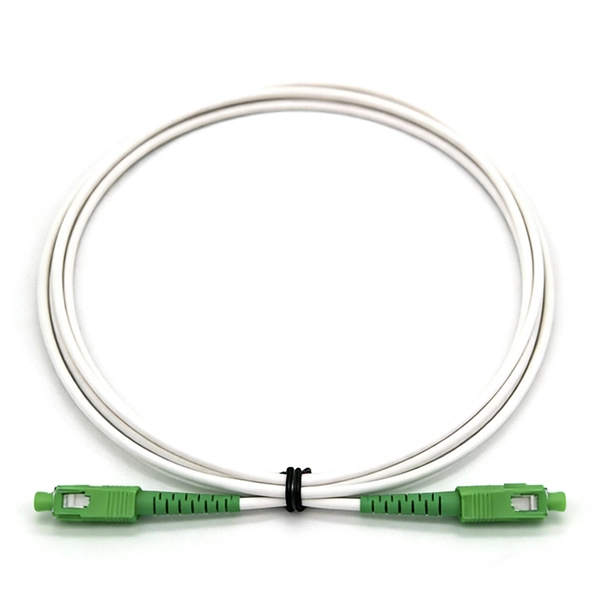

• Connector Types: Common connectors include LC, SC, ST, FC, MTRJ, and MPO, available in both single-mode (9/125 µm) and multimode (50/125 or 62.5/125 µm) configurations .
• Adapter and Pigtail Options: Many panels come pre-loaded with adapters and pigtails, enabling quick deployment and reducing installation time .

Features and Benefits

• Cable Management: Sliding trays, push-pull drawers, and modular designs allow for organized routing, easy access, and minimal downtime during maintenance .
• Scalability and Modularity: Panels like AFL's Denali High-Density and Xpress Fiber Management® (XFM®) are modular and scalable, allowing network expansion without major infrastructure changes .
• High-Density Solutions: Ultra high-density panels maximize rack space, supporting mix-and-match configurations with fiber and copper cassettes for flexible deployment .
• Protection: Panels safeguard fibers from bending, stress, and accidental disconnections, ensuring signal integrity and network reliability .

Applications

Fiber optic patch panels are ideal for:

• Data centers requiring high-density interconnects and cross-connects.
• Enterprise networks needing organized fiber management for LAN and WAN connections.
• Telecommunications rooms where structured cabling and easy maintenance are critical.

Selection Considerations

When choosing a fiber optic patch panel for server racks, consider:

1. Port density requirements based on current and future network growth.
2. Connector type compatibility with existing fiber infrastructure.
3. Rack space availability and panel size (1U–4U).
4. Ease of installation and maintenance, including sliding trays or modular cassettes.
5. Single-mode vs. multimode fiber depending on transmission distance and application. By selecting the appropriate fiber optic patch panel, organizations can achieve efficient, scalable, and reliable network connectivity while maintaining a clean and manageable server rack environment .
