Computer Room System Cabling

A computer room cabling system is a structured, standards-based network of cables and hardware designed to ensure reliable, scalable, and maintainable connectivity for servers, network devices, and end-user equipment.Structured Cabling Overview

Structured cabling is a systematic approach to designing and installing a network infrastructure that supports data, voice, and video transmission throughout a building or campus. It replaces point-to-point wiring with a hierarchical, organized system of cables, connectors, and patch panels, allowing for easier management, troubleshooting, and future upgrades . Key benefits include reduced downtime, simplified maintenance, and scalability for new technologies.

Key Components

1. Equipment Room (ER) / Main Distribution Frame (MDF): Central hub connecting external service provider lines to internal network infrastructure, housing switches, servers, and patch panels .

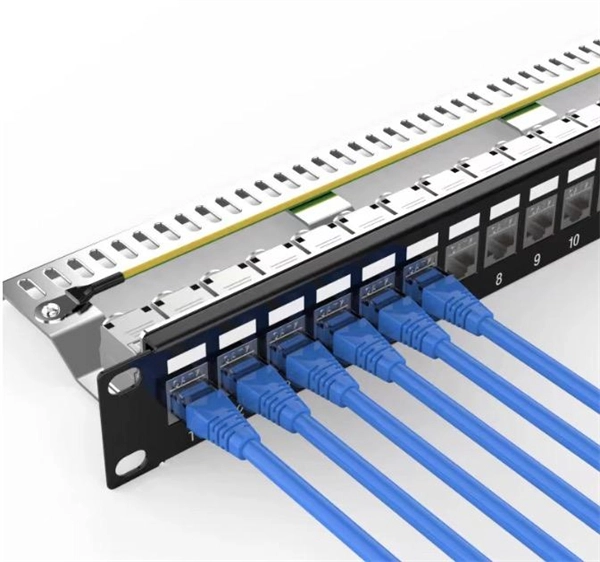

2. Patch Panels: Terminate and organize cables, enabling quick identification and troubleshooting of connections .
3. Horizontal Cabling: Connects the telecommunications enclosure to individual work areas or outlets, typically using Cat6/Cat6A or fiber cables .
4. Backbone Cabling: Connects equipment rooms, telecommunication rooms, and entrance facilities, supporting high-speed data transfer across the network .
5. Zone Distribution Areas (ZDA): Optional consolidation points in large computer rooms for flexible cabling between horizontal and equipment distribution areas .

Cabling Layout Options

• Overhead Cabling: Cables run along the ceiling, providing easy access for maintenance, better airflow, and flexibility for rerouting . Risks include accidental disconnects and aesthetic concerns.
• Underfloor Cabling: Cables run beneath raised floors, often integrated with cooling systems. This approach keeps cables out of sight but can complicate access and maintenance .

Standards and Best Practices

Structured cabling should comply with industry standards such as ANSI/TIA-568, ISO/IEC 11801, and TIA-942 for data centers . Proper labeling, documentation, and testing of cable runs are essential for reliability and future-proofing. Low-voltage cabling for voice, data, and security systems should be planned to avoid interference and support high-speed network requirements .

Practical Considerations

• Cooling and Airflow: Overhead cabling avoids obstructing underfloor cooling, improving equipment performance .
• Maintenance: Structured cabling simplifies moves, adds, and changes (MACs), reducing downtime .
• Scalability: Modular design allows easy integration of new technologies, including fiber optics and high-speed Ethernet .
• Safety: Proper support and routing prevent cable strain, accidental disconnections, and hazards from ladders or raised floors . A well-designed computer room cabling system ensures efficient data flow, reliable connectivity, and long-term adaptability, making it a critical component of any modern IT infrastructure.
