How to leave a wiring box for the distribution box

To leave a wiring box for a distribution box, ensure proper wire preparation, color coding, secure connections, and safety checks before installation.Step 1: Plan and Prepare

Before starting, turn off the main power supply to prevent electrical shock. Choose a dry, ventilated, and accessible location for the wiring box, ideally near the distribution box, and ensure there is enough space for future maintenance and heat dissipation . Prepare all necessary tools and materials, including insulated wires, wire strippers, cable ties, terminal blocks, and personal protective equipment like gloves and safety glasses .

Step 2: Wire Preparation

• Strip the insulation from the ends of each wire, leaving a suitable length of exposed conductor for secure terminal connections .
• Select the correct wire gauge according to the circuit load: typically, 2.5mm² for lighting and sockets, and 2.5–4.0mm² for air conditioning or heavier loads .
• Color code the wires according to standards: blue for neutral, yellow/green/red for phases A/B/C, and green or green/yellow for ground .

Step 3: Organize and Secure Wires

• Arrange wires neatly inside the wiring box, keeping incoming wires on the left and outgoing wires on the right for clarity .
• Bind wires with plastic ties at uniform spacing to prevent tangling and maintain straight lines .
• Leave space for heat dissipation and future expansion .

Step 4: Terminal Connections

• Connect phase wires to phase terminals, neutral to neutral, and ground to ground in the distribution box .
• Use a wire stripper or screwdriver to ensure tight and secure connections. Avoid loose contacts to prevent overheating or short circuits .
• If using multiple circuits, connect each wire to its corresponding circuit breaker or terminal block according to the planned layout .

Step 5: Safety Checks

• Perform an insulation resistance test to verify that wires are properly insulated and there is no leakage .
• Use a multimeter to check continuity and ensure there are no short circuits before powering on .
• Clearly label each wire and circuit for easy identification during maintenance or troubleshooting .

Step 6: Final Considerations

• Ensure the wiring box is securely mounted and level, using expansion bolts or screws as needed .

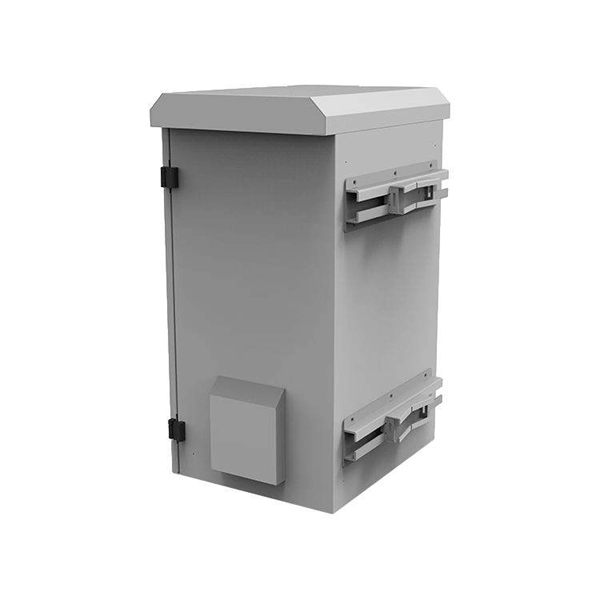

• If the wiring box is outdoors, use a waterproof enclosure with appropriate IP or NEMA ratings to protect against moisture and dust .
• Schedule regular inspections to maintain long-term safety and reliability . By following these steps, your wiring box will be properly prepared for safe and efficient connection to the distribution box, ensuring compliance with electrical standards and ease of future maintenance.
