Optical modulator and optical module

Fiber optic adapter knowledge brief Published 02 Dec 2021

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

An optical modulator encodes data onto light, while an optical module integrates modulators, lasers, and photodiodes to convert electrical signals to optical signals and vice versa.Optical Modulator

An optical modulator is a device that encodes electrical signals onto a light beam, controlling properties such as intensity, phase, or polarization to represent digital data . It acts as a bridge between electronic and photonic systems. There are two main types:

  • Direct Modulation: The laser's current is varied to modulate light output. It is simple but limited in speed and distance.
  • External Modulation: Light from a continuous-wave laser passes through an external device, such as a Mach–Zehnder Modulator or Electro-Absorption Modulator, allowing precise control and support for advanced modulation formats like PAM4, QPSK, and QAM . Optical modulators are essential for high-speed, high-capacity optical communication, minimizing distortion, jitter, and optical chirp.
Optical Module

An optical module is a compact, often hot-pluggable transceiver that performs optoelectronic conversion, enabling data transmission over fiber optic networks . It typically includes:

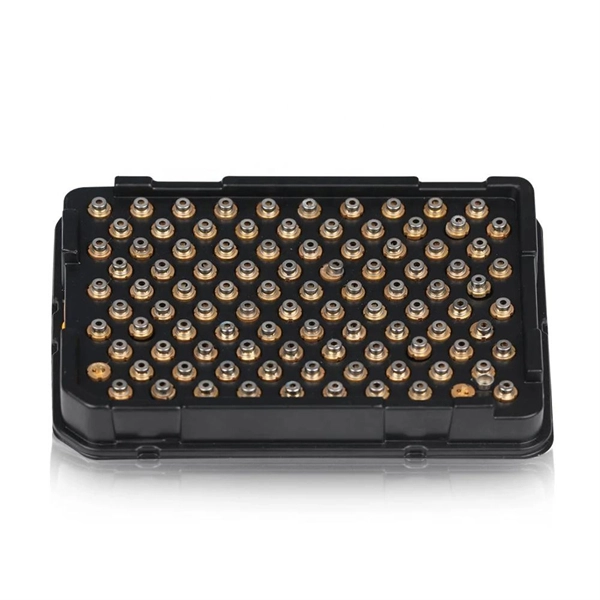

  • Transmitter Optical Sub-Assembly (TOSA): Contains a laser diode or LED to emit modulated light.
  • Receiver Optical Sub-Assembly (ROSA): Contains a photodiode to convert incoming light back into electrical signals.
  • Driver and Control Circuits: Manage signal modulation, optical power, and interface with the host system.
  • Housing and Interfaces: Provide mechanical protection and electrical/optical connectivity . Optical modules operate at the physical layer of the OSI model and are used in applications ranging from data centers and 5G networks to long-haul telecom systems. They integrate lasers, modulators, and photodiodes into a single unit, enabling efficient, high-speed optical communication .
Key DifferencesFeatureOptical ModulatorOptical ModuleFunctionEncodes data onto lightConverts electrical signals to optical signals and vice versaComponentsCan be standalone or integratedIncludes laser, modulator, photodiode, and control circuitsRoleData encodingComplete transceiver for fiber optic communicationApplicationHigh-speed modulation, advanced formatsNetwork interfaces, data centers, telecom links

In summary, optical modulators are specialized devices for encoding data onto light, while optical modules are integrated systems that include modulators along with lasers and photodiodes to enable full optical communication .
