Fiber Attenuation Measurement with Optical Power Meter

An optical power meter is an essential tool for measuring signal strength and fiber attenuation in optical networks, providing accurate readings of optical power and loss in dBm and dB.Purpose and Function

Optical power meters are used to measure the power of light signals in fiber optic cables and to determine attenuation (signal loss) caused by fiber, connectors, or splices . They are critical for installation, maintenance, and troubleshooting of fiber optic networks, ensuring that signal levels meet system specifications . Attenuation is typically expressed in decibels (dB), while optical power is measured in dBm .

How They Work

A typical optical power meter consists of a host unit and a probe. The probe detects light from the fiber and generates a photocurrent, which the host amplifies and converts into a digital reading . The photodiode sensor is the core component, sensitive to light levels from about 1 nanowatt (nW) to 1 milliwatt (mW). Common detector types include Silicon (Si), Germanium (Ge), and Indium-Gallium-Arsenide (InGaAs), each suitable for specific wavelength ranges . The meter displays the measured optical power and allows the user to set the wavelength to match the signal being tested, ensuring accurate readings .

Usage Tips
  • Set the correct wavelength on the meter to match the fiber signal (e.g., 850, 1300, 1310, 1550 nm) for accurate measurements .
  • Clean connectors before testing to prevent dust from affecting readings .
  • Calibrate the meter regularly to maintain accuracy and compliance with industry standards .
  • Use consistent measurement procedures to ensure reliable results, including verifying that light travels from transmitter to receiver .
Advanced Features

Modern optical power meters, such as the SimpliFiber® Pro or XL fiberTOOLS™ series, offer dual-wavelength testing, automatic wavelength detection, and integrated fiber inspection tools . These kits allow technicians to measure loss, inspect connectors, locate faults, and verify network performance efficiently. Some meters also include features like CheckActive™ and FindFiber™ to simplify troubleshooting .

Practical Considerations

When testing fiber attenuation:

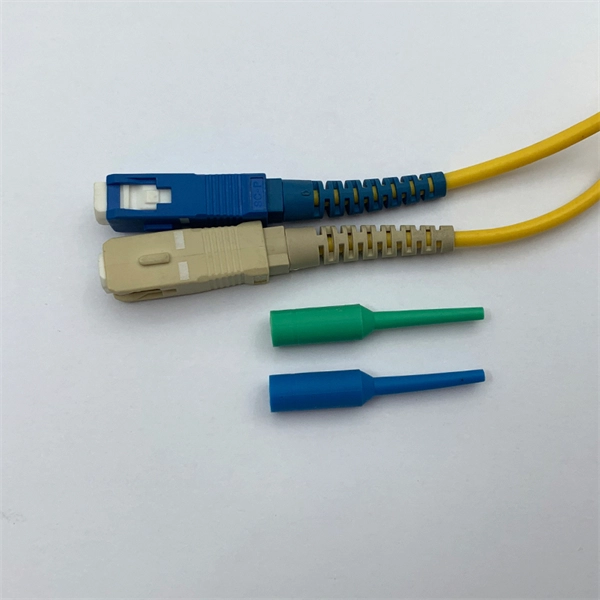

  • Connect the meter to the fiber using appropriate modular adapters for different connector types .
  • Measure total signal loss from the fiber, including splices and connectors .
  • Ensure the meter is calibrated for the specific wavelength to maintain traceable and consistent results . Optical power meters are indispensable for accurate fiber network assessment, helping technicians maintain optimal signal quality and network reliability .
