Function of each part of the optical cable junction box

An optical cable junction box protects, organizes, and connects optical fibers, with each component serving a specific role in ensuring signal integrity and durability.Outer Casing and Sealing

The outer casing serves as the primary protective layer, shielding internal components from environmental hazards such as moisture, dust, physical impact, and temperature extremes . It ensures the box meets high protection standards (IP68) and can withstand mechanical stress (IK10+). The sealing components—including mechanical seals, heat-shrink tubes, gels, or ventilation valves—prevent water infiltration and maintain a stable internal environment, which is critical for preserving fiber performance .

Internal Support Components

The support frame or skeleton provides mechanical strength and stability to the junction box. It includes brackets, clamps, and cable fixing devices that secure the optical cables and their reinforcing cores, preventing stress or bending that could damage fibers . These supports also allow flexible routing of fibers, ensuring proper bend radii and minimizing signal loss.

Fiber Splice Trays

Splice trays are designed to hold and protect spliced fiber strands. They organize fibers neatly, maintain minimum bending radii, and prevent tangling or damage. Trays can be multi-layered to accommodate varying numbers of fibers and allow easy access for maintenance or future expansion .

Fiber Placement and Storage Devices

The fiber placement device or storage tray stores excess fiber and connectors in an orderly manner. It ensures that leftover fiber lengths are sufficient (typically at least 1 meter) and that winding diameters meet minimum standards (e.g., 35 mm) to avoid microbends or stress on the fibers . Proper storage prevents damage from environmental conditions and facilitates efficient network management.

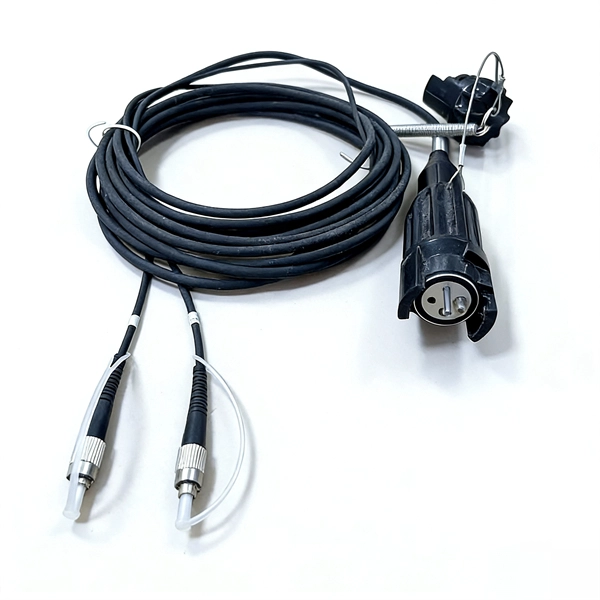

Connectors and Adapters

Connectors and adapters provide interface points for joining optical fibers, enabling secure and flexible connections. They allow fibers to be connected, disconnected, or reconfigured without splicing, supporting modularity and network scalability . These components also help maintain signal integrity by minimizing insertion loss.

Cable Fixing and Protective Elements

Cable fixing devices secure the incoming and outgoing optical cables to the junction box, often using clamps or heat-shrinkable sheaths. This prevents movement that could stress the fibers and ensures a tight seal at entry and exit points . Protective plates or jackets may be used to shield splices and connectors from mechanical damage.

Summary

Each component of an optical cable junction box works together to protect fibers, maintain signal quality, and facilitate organized cable management. The casing and seals guard against environmental hazards, internal supports and splice trays maintain fiber integrity, storage devices manage excess fiber, and connectors/adapters enable flexible network connections. Proper design and installation of these components are essential for reliable optical communication networks .
