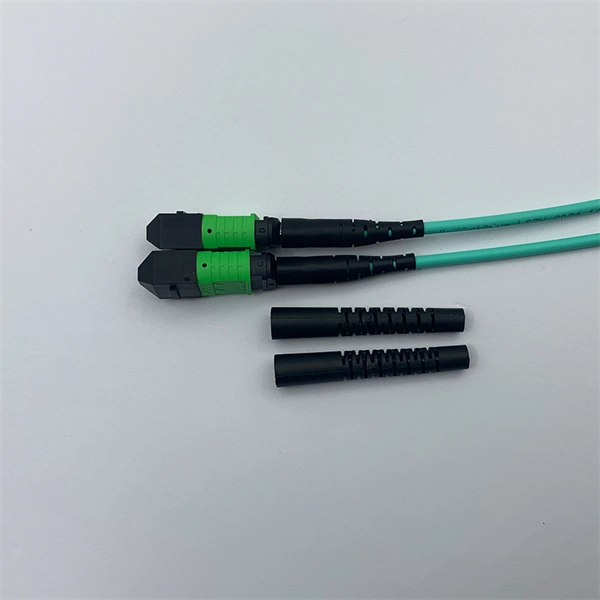

Connection between single-mode and multimode optical cables

Single-mode and multimode optical fibers cannot be directly spliced due to core size differences; using a media converter or mode conditioning patch cable is the recommended solution.Understanding the Challenge

Single-mode fiber (SMF) has a small core, typically around 9 microns, allowing only one light mode to propagate, which is ideal for long-distance, high-speed transmission . Multimode fiber (MMF) has a larger core, usually 50 or 62.5 microns, supporting multiple light modes, making it suitable for short-range, high-capacity networks . Directly connecting SMF to MMF causes severe insertion loss and modal dispersion, often resulting in network failure .

Professional Solutions

1. Fiber Optic Media Converters Media converters are standalone devices that convert optical signals between single-mode and multimode fibers. They work by receiving the optical signal on one port, converting it to an electrical signal, and retransmitting it as an optical signal on the other port using the appropriate laser wavelength (e.g., 1310nm SMF to 850nm MMF), . This method is cost-effective and reliable for point-to-point links, connecting LANs to WANs, or extending network segments.
2. Mode Conditioning Patch Cables (MCP) MCPs are duplex patch cords designed to launch a longwave laser into multimode fiber without causing differential mode delay (DMD). One end is single-mode fiber precisely offset-spliced to multimode fiber on the other end . MCPs are ideal when connecting transceivers with longwave LX/LH outputs to a multimode backbone, ensuring minimal signal distortion.

Best Practices

• Avoid direct splicing of SMF and MMF due to high signal loss .
• Use consistent fiber types whenever possible to maintain network integrity .
• Test connections with an OTDR to measure insertion loss and verify performance .
• For new installations, consider laying single-mode fiber if long-distance transmission is required . By using media converters or mode conditioning patch cables, you can safely bridge single-mode and multimode networks while minimizing signal degradation and maintaining reliable communication performance .
