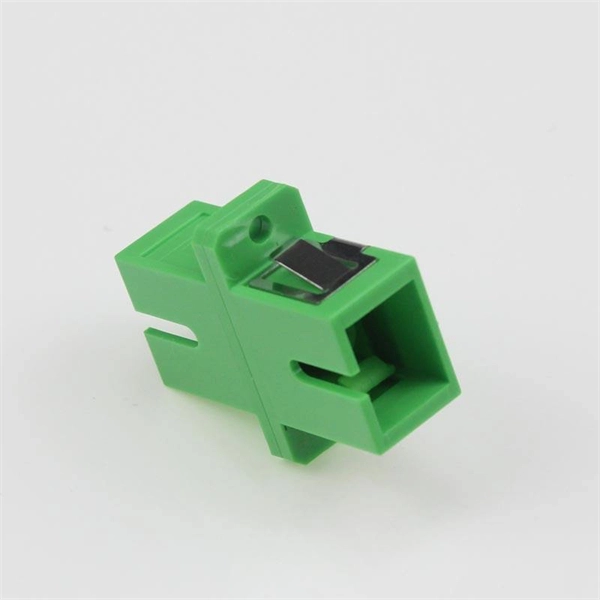

Testing Methods for Fiber Optic Adapters

Fiber optic adapters are tested primarily through visual inspection, insertion loss measurement, and return loss measurement to ensure reliable and efficient connections.Visual Inspection

Visual inspection is the first and most fundamental step in testing fiber optic adapters. It involves examining the adapter for physical damage such as scratches, cracks, or deformities, and ensuring that connectors are clean and free from dust or debris. Technicians typically use a fiber optic inspection microscope or a video inspection probe to closely inspect the end faces of the adapter for scratches, pits, or other imperfections. Any defects can significantly impact signal transmission and connection quality .

Insertion Loss Measurement

Insertion loss quantifies the amount of optical power lost when light passes through the adapter. To measure it:

1. Connect a stable light source to one end of the adapter.
2. Use an optical power meter at the other end to measure the received power.
3. Compare the measured power with the transmitted power without the adapter. The difference indicates the insertion loss. Ensuring that the insertion loss is within the specified tolerance is critical for maintaining network performance .

Return Loss Measurement

Return loss measures the amount of light reflected back toward the source due to imperfections or mismatches in the adapter. High return loss can degrade signal quality and reduce data integrity. Measurement can be performed using an Optical Time-Domain Reflectometer (OTDR) or a return loss meter. The results should meet the specified standards for the adapter's application and operating wavelength .

Additional Testing Considerations

• Interchangeability Testing: Ensures that adapters can reliably connect with different fiber connectors without performance degradation.
• Environmental Durability Testing: Evaluates the adapter's performance under temperature variations, humidity, or mechanical stress to ensure long-term reliability.
• Documentation and Standards Compliance: Testing should follow industry standards such as TIA/EIA, IEC, or ISO to ensure consistency and interoperability across networks . By combining these methods, engineers and technicians can verify the performance, reliability, and durability of fiber optic adapters, minimizing signal loss and maintaining optimal network efficiency. Regular testing and maintenance are essential for sustaining high-quality optical communication systems .
