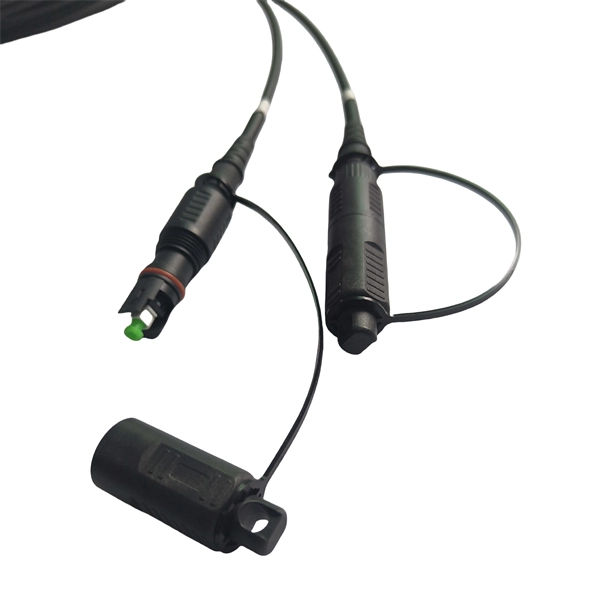

Fiber Optic Cable Fitting Repair Strip

Repairing a fiber optic cable involves stripping the outer coating, preparing the fiber ends, splicing or connecting them, and testing for signal integrity.Tools Required

To repair or fit fiber optic cables, you will need specialized tools such as a fiber optic stripper, cutter, crimper, and splicing kit. Optional tools include a visual fault locator (VFL), optical power meter, and cleaning supplies to ensure a clean connection . Comprehensive kits, like the FiberShack 12-piece FTTH tool kit, include connectors, adapters, and meters for home or professional repairs .

Step-by-Step Repair Process

1. Identify the Damage Inspect the cable for visible cuts, frays, or tears in the outer coating. Using an OTDR (Optical Time Domain Reflectometer) can help locate breaks precisely .
2. Cut Out the Damaged Section Trim the cable just below the damaged area using a fiber optic cutter to ensure clean ends .
3. Strip the Cable Remove the outer jacket and protective layers with a fiber optic stripper to expose the glass fibers. Be careful not to nick or break the fibers .
4. Clean the Fiber Ends Use alcohol wipes or specialized cleaning tools to remove dust and debris from the exposed fibers. Clean ends are critical for low-loss connections .
5. Splice or Connect the Fibers
   • Mechanical Splice: Insert the fibers into a mechanical connector and secure with a crimper.
   • Fusion Splice: Align the fibers in a fusion splicer and fuse them together for minimal signal loss (
