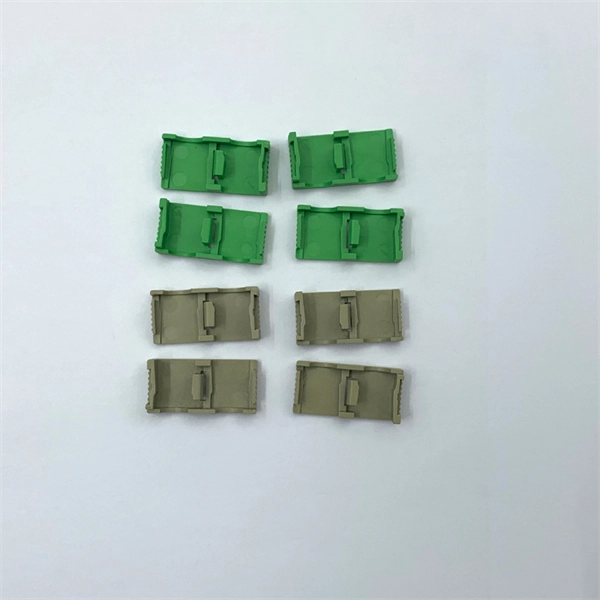

Cable tray sealing and brickwork sealing

Effective sealing of cable trays and brickwork ensures fire safety, smoke containment, and structural integrity while allowing flexibility for future cable modifications.Cable Tray Sealing

Purpose: Cable tray sealing prevents the spread of fire, smoke, gas, and water through wall and floor penetrations where cables pass. It also maintains the structural integrity of the building and protects equipment . Materials and Systems:

• Firestop packs and mineral wool: Used to fill gaps around cables and trays, providing fire resistance and mechanical stability .
• Intumescent materials: Expand under heat to seal gaps created by melting or burning cables, ensuring continued fire protection .
• Modular sealing systems: Products like FIRSTO and Roxtec allow easy installation around multiple cables and trays, with flexibility for adding or removing cables later .
• Retrofit devices: The EZ Path Cable Tray Retrofit Device restores firestopping in existing installations without major rework, suitable for high-density cable trays . Installation Guidelines:
• Ensure tight, crack-free sealing around all penetrations.
• For large openings, install a fire-resistant backing plate before sealing.
• Maintain a gap area between firestop packs and cables of no more than 1 cm², with packing thickness not less than 24 cm .
• Cover plates should be square, evenly painted, and properly dimensioned to close the opening.

Brickwork Sealing

Purpose: Sealing brickwork penetrations maintains fire resistance, prevents smoke and water ingress, and supports structural stability. Materials and Techniques:

• Fire-rated boards and mastic: Used to seal gaps in brick walls around cable or pipe penetrations.
• Mineral wool or firestop packs: Provide thermal insulation and fire resistance.
• Backing plates: For large apertures, fire-resistant backing plates support the seal and ensure uniform coverage . Best Practices:
• Ensure the seal is continuous and free of voids.
• Position and layout seals to allow future maintenance or cable additions.
• Use tested and certified systems compliant with standards such as UL 1479 and EN 1366 .

Key Considerations

• Compliance: Always use firestopping materials and systems that are tested and certified for the specific penetration type.
• Flexibility: Modular systems allow for future cable changes without compromising fire safety.
• Multiple hazards: Some systems also protect against water, gas, and electromagnetic interference, in addition to fire .
• Maintenance: Regular inspection ensures seals remain intact and effective over time. By following these guidelines and using certified materials, cable tray and brickwork sealing can provide reliable fire protection, maintain building integrity, and allow for operational flexibility.
