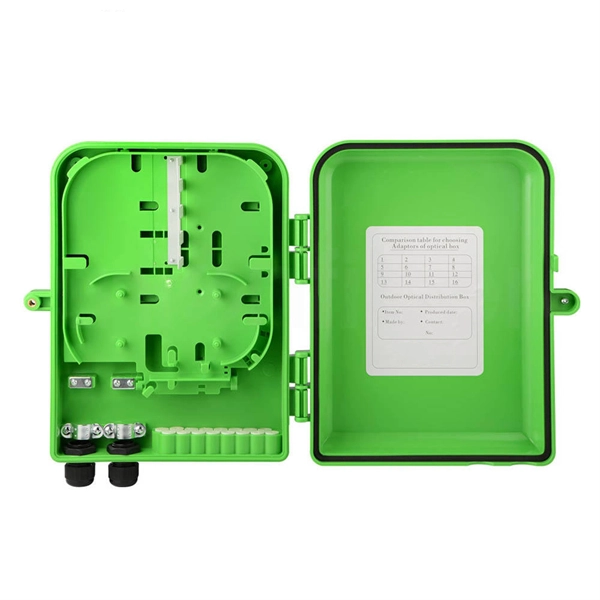

How to use a single-ended optical cable splice closure

A single-ended optical cable splice closure is installed by preparing the cable, inserting it into the closure, securing and sealing it, and organizing the fiber splices within trays for protection and reliability.Step 1: Prepare the Fiber Cable

• Remove the outer jacket of the optical cable according to the manufacturer's instructions, exposing the loose tubes or individual fibers. If the cable has shielding or armor, remove these layers carefully. Leave a sufficient length (typically around 3 meters) for handling and splicing .
• Clean and abrade the exposed cable sections using a cleaning solution and sandpaper to ensure a smooth surface for sealing and adhesion .
• Separate and organize fibers for splicing, ensuring they are free from debris and properly labeled.

Step 2: Prepare the Closure

• Select the appropriate sealing rings or O-rings based on the cable diameter. Single-ended closures often come with multiple sizes to accommodate different cable types ( ).
• Open the closure by removing the dome or latches, exposing the base and fiber trays. Ensure the closure is clean and free of dust or moisture.

Step 3: Insert and Secure the Cable

• Insert the cable into the designated entry port of the closure. Single-ended closures typically have one main entry point for the incoming cable and multiple ports for drop cables ( ).
• Seal the cable using the selected O-rings and self-adhesive sealing tape. Wrap the tape between the O-rings to create a tight, moisture-resistant seal .
• Secure the cable to the base using clamps or brackets provided with the closure to prevent movement and strain on the fibers.

Step 4: Grounding and Shielding

• If the cable has a metallic shield or strength member, connect it to the grounding point inside the closure to ensure electrical safety and reduce interference .

Step 5: Organize Fiber Splices

• Place fibers into splice trays within the closure. Single-ended closures often have stacked trays that allow for flexible expansion and easy access ( ).
• Perform splicing (fusion or mechanical) according to standard procedures, ensuring minimal bend radius and proper protection of each splice.
• Secure fibers in the trays and cover them to prevent movement or damage.

Step 6: Close and Seal the Enclosure

• Reattach the dome or cover, ensuring all latches or clamps are properly engaged. Single-ended closures often use a dome-to-base clamping system or O-ring seal for environmental protection ( ).
• Check the seal for tightness and ensure no gaps exist that could allow moisture or dust ingress.

Step 7: Final Inspection

• Verify that all fibers are properly routed, splices are protected, and the closure is fully sealed.
• Label the closure and document the fiber connections for future maintenance. By following these steps, a single-ended optical cable splice closure can be installed securely, providing mechanical protection, environmental sealing, and organized fiber management for reliable network performance ( ).
