Complete Guide to Fiber Optic Communication Code Patterns

Fiber optic communication relies on standardized color codes to identify cable types, individual fibers, and connector types, ensuring accurate installation and maintenance.Fiber Color Coding Standards

Fiber optic networks use color coding systems to organize cables, strands, and connectors, which is essential for efficient installation, splicing, testing, and troubleshooting ( ). The most widely adopted standards are EIA/TIA-598-D and TIA-598-C, which define color codes for:

• Outer Cable Jackets – indicate fiber type and mode (e.g., OM1, OM2, OM3, OM4, OM5, OS2) ( ).

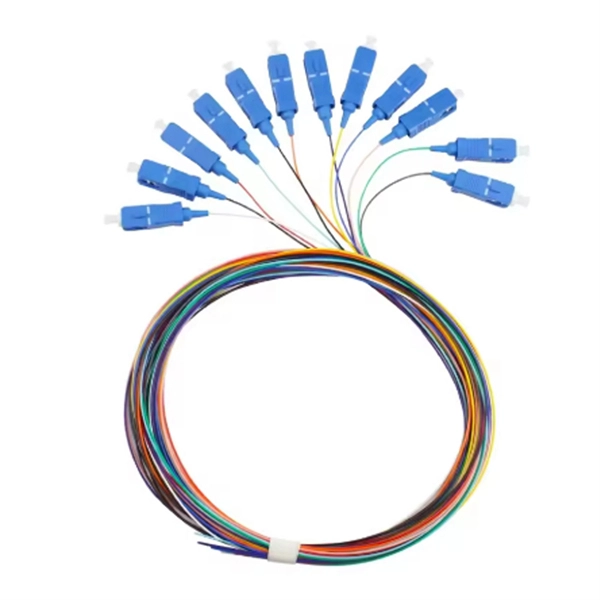

• Inner Fiber Strands – identify individual fibers within multi-fiber cables using a 12-color repeating sequence ( ).
• Connector Boots and Polishes – indicate fiber mode and polish type (e.g., blue = UPC, green = APC) ( ).

Standard 12-Color Sequence

The 12-color sequence is the foundation for identifying fibers in structured cabling systems:

1. Blue
2. Orange
3. Green
4. Brown
5. Slate
6. White
7. Red
8. Black
9. Yellow
10. Violet
11. Rose
12. Aqua For cables exceeding 12 fibers, the sequence repeats for fibers 13–24, 25–36, and so on ( ).

High-Count Fiber Identification

For high-count cables (e.g., 48, 96, 144 fibers), a Tube and Fiber system is used ( ):

• Each buffer tube is assigned a color from the 12-color sequence.
• Individual fibers inside the tube follow the same 12-color sequence. Example: Fiber #34 in a 48-fiber cable:
• Divide 34 by 12 → 3rd tube (Green Tube)
• 10th fiber in that tube → Violet Fiber
• Result: Fiber #34 is the Violet fiber in the Green tube ( ). Some European or high-density ribbon cables use a 16-color sequence for MPO connectors, with fibers 13–16 as Olive, Magenta, Tan, and Lime ( ).

Connector and Boot Color Codes

Connector boots help identify fiber mode and polish type:

• Blue – UPC (Ultra Physical Contact)
• Green – APC (Angled Physical Contact)
• Beige – Multimode (OM1/OM2)
• Aqua – OM3/OM4
• Violet – OM5 These colors may vary slightly by manufacturer, but the blue/green convention for UPC/APC is universal ( ).

Importance of Fiber Color Codes

• Reduces errors during splicing, testing, and maintenance.
• Speeds up installation in large-scale networks.
• Ensures consistency across different manufacturers and network environments.
• Simplifies troubleshooting by allowing technicians to quickly locate damaged or disconnected fibers ( ).

Additional Resources

For a deeper understanding, the FOA Guide to Fiber Optics provides tutorials, step-by-step installation guides, and self-study courses covering fiber types, cabling, and communication systems ( ). ITU-T handbooks also provide historical and technical context for optical fiber systems and standards ( ). By following these standardized fiber optic code patterns, technicians can ensure reliable network deployment, minimize downtime, and maintain high-performance communication systems.
