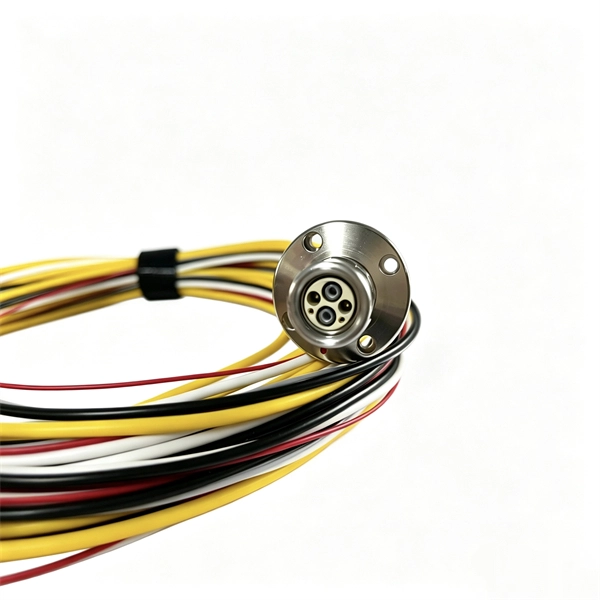

Testing of Single-mode and Multimode Fibers

Testing of single-mode and multimode fibers ensures proper performance, verifies design specifications, and establishes a baseline for future troubleshooting.Key Testing Objectives

Fiber optic testing is essential to evaluate the performance of installed cables, connectors, and splices. The main objectives include:

• Continuity and polarity verification to ensure correct fiber connections.
• Insertion loss measurement to quantify signal attenuation.
• Splice and connector quality assessment, often using OTDR for detailed analysis.
• Establishing a performance baseline for future maintenance and troubleshooting .

Differences Between Single-Mode and Multimode Fiber Testing

• Single-mode fiber (SMF) has a small core (8–10 µm) and is designed for long-distance transmission. Testing typically uses laser sources at 1310 nm or 1550 nm wavelengths. OTDR testing requires appropriate launch cables to avoid dead zones and ensure accurate loss measurements over long distances .
• Multimode fiber (MMF) has a larger core (50–62.5 µm) and is optimized for short-distance applications. Testing uses LED or VCSEL sources at 850 nm or 1300 nm wavelengths. OTDR settings differ from single-mode to account for modal dispersion and larger core size .

Standard Testing Methods

1. Optical Loss Test Set (OLTS) / Light Source and Power Meter (LSPM): Measures end-to-end attenuation and verifies link length and polarity. Testing should be performed at the operating wavelength of the network, and bidirectional testing is recommended for accuracy .
2. Optical Time Domain Reflectometer (OTDR): Provides a detailed view of fiber quality, including splice and connector losses, bends, and breaks. OTDR testing differs for SMF and MMF due to wavelength and core size considerations .
3. IEC 61280-4-5 Standard: Specifies methods for measuring attenuation, polarity, and length for both single-mode and multimode fibers, including MPO-terminated cabling .
4. Tiered Testing Approach: Tier 1 testing includes link attenuation, length, and polarity checks. Tier 2 may include more detailed characterization, such as bidirectional loss testing and OTDR trace analysis .

Practical Considerations

• Wavelength Selection: Use the wavelength corresponding to the network's operational design (e.g., 850 nm for multimode VCSEL networks, 1310/1550 nm for single-mode networks).
• Connector and Splice Verification: Ensure all terminations are properly polished and connectors are clean to minimize insertion loss.
• Documentation: Record all test results to create a baseline for future troubleshooting and network maintenance .

Summary

Testing both single-mode and multimode fibers is critical for network reliability. Single-mode fibers require precise laser-based testing over long distances, while multimode fibers use LED/VCSEL sources for shorter runs. Standardized methods, including OLTS, LSPM, and OTDR, along with adherence to IEC and industry guidelines, ensure accurate performance verification and long-term network stability .
