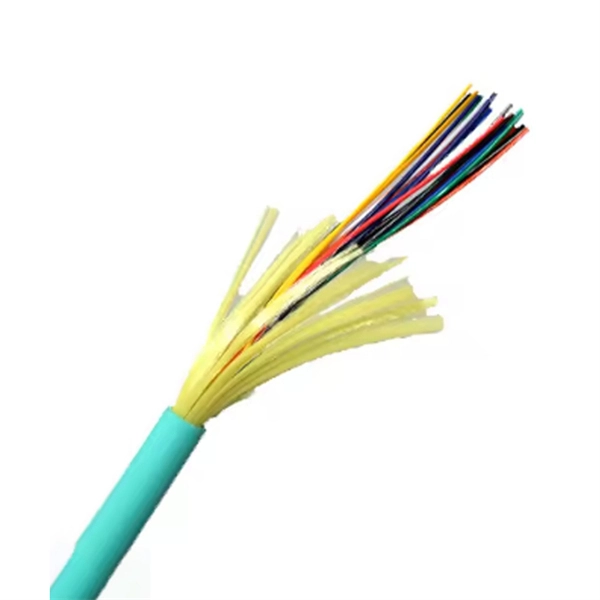

How to inspect the quality of optical cables

Inspecting optical cable quality involves visual inspection, optical loss testing, OTDR analysis, continuity verification, and adherence to international standards like IEC, TIA, and FOA.Visual Inspection

Start with a visual inspection to identify contamination, scratches, cracks, or endface defects on connectors and fiber ends, as these directly affect optical performance. This should be done before and after any optical measurements to ensure the cable is free from physical damage or dirt that could compromise signal quality .

Optical Loss Testing

Insertion loss testing measures the total optical loss of a fiber cable or link. It confirms whether the cable meets the design loss budget and is essential for both short and long-distance deployments. Use a calibrated light source and optical power meter to obtain accurate readings .

OTDR Testing

Optical Time-Domain Reflectometer (OTDR) testing identifies events along the fiber length, such as splices, bends, or breaks. OTDR is particularly important for long-distance, outdoor, or FTTH feeder cables, providing a precise location of faults and a permanent visual record of the cable's attributes .

Continuity and Polarity Checks

Verify that each fiber core is intact and correctly mapped. Continuity testing ensures the fiber is properly connected from end to end, while polarity checks confirm that transmit and receive paths are correctly aligned. Tools like fiber identifiers or visual fault locators can help detect signal presence without disconnecting the network .

Mechanical and Environmental Assessment

Inspect the cable for mechanical integrity, including bends, crimps, or rips. Improper handling during installation can cause latent defects that optical tests alone may not reveal. Environmental testing may also be required to ensure compliance with temperature, humidity, and weather resistance standards .

Compliance with Standards

Ensure testing aligns with international standards:

• IEC: Defines technical and test standards for fiber optics, including connector geometry and optical performance .
• TIA: Widely used in North America for structured cabling, MPO/MTP systems, and patch cords .
• FOA: Provides field-friendly standards and procedures for technicians, including visual inspection, one-cord referencing, and proper documentation .

Documentation and Acceptance

Maintain test documentation for each cable assembly, including insertion loss, OTDR traces, and visual inspection results. Acceptance criteria should match project specifications, not generic limits, to ensure reliable network performance .

Recommended Tools

• Optical power meter and light source for insertion loss measurement
• OTDR for fault location and splice verification
• Fiber identifier for non-intrusive signal detection
• Visual inspection microscope for connector endfaces
• Visual fault locator for continuity checks By combining these methods and adhering to recognized standards, you can reliably inspect and verify the quality of optical cables, ensuring optimal performance and long-term network reliability.
