288-core optical cable splicing two 96-core optical cables

To splice two 96-core optical cables into a 288-core cable, use a high-capacity splice closure with organized splice trays and proper fiber management to ensure protection and minimal signal loss.Choosing the Right Splice Closure

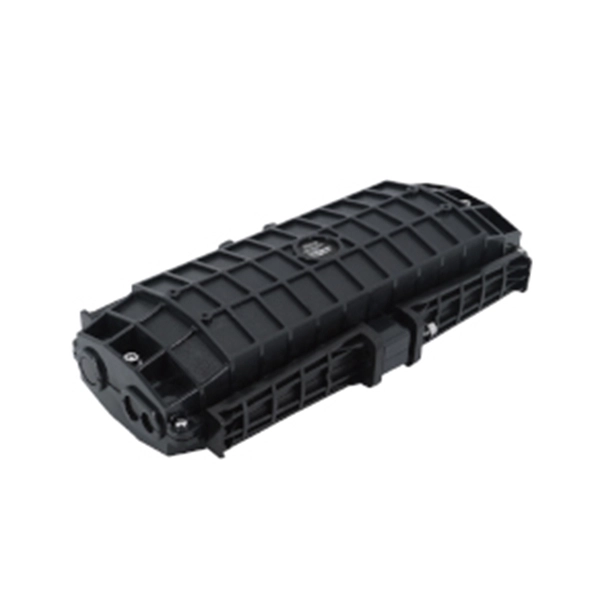

For high fiber counts like 288 cores, you need a dome-type or vertical fiber optic splice closure designed to accommodate multiple cables and high-density splicing . These closures typically feature:

• Capacity for 288 fibers with multiple splice trays.
• Environmental protection: IP68 waterproofing, chemical resistance, and temperature tolerance from -35°C to 70°C .
• Flexible mounting options: aerial, wall, pole, or direct-buried installation .
• Cable ports: multiple heat-shrink or mechanical seals to secure incoming and outgoing cables.

Splice Tray Organization

Splice trays are essential for organizing fibers and preventing stress:

• Ribbon or loose tube management: High fiber count cables often use rollable ribbons or loose tube designs to allow compact splicing .
• Tray capacity: Each tray may hold 12–24 fibers, so multiple trays are stacked to accommodate all 288 fibers .
• Labeling and routing: Clearly label each fiber and route them carefully to avoid bending beyond the minimum bend radius.

Splicing Method

• Fusion splicing is recommended for high fiber counts to minimize insertion loss and ensure long-term reliability.
• Ribbon splicing: If the cables use ribbon fibers, splice entire ribbons at once using a ribbon fusion splicer.
• Buffer tube splicing: For loose tube cables, individual fibers are spliced and protected with heat-shrink sleeves or mechanical protection.

Cable Furcation and Protection

• Furcation kits are used to transition fibers from the main cable into splice trays, providing mechanical protection and organization .
• Ensure that fibers are strain-relieved at entry points to prevent stress during installation or environmental changes.

Best Practices

• Maintain minimum bend radius for all fibers.
• Use cleaning and inspection tools to ensure splices are free of contamination.
• Test each splice with an OTDR or power meter to verify low loss and continuity.
• Plan for future expansion by leaving extra splice tray capacity if additional fibers may be added. By using a 288-core splice closure, organized splice trays, proper furcation, and fusion splicing techniques, you can reliably combine two 96-core cables into a high-density 288-core system while maintaining signal integrity and environmental protection .
