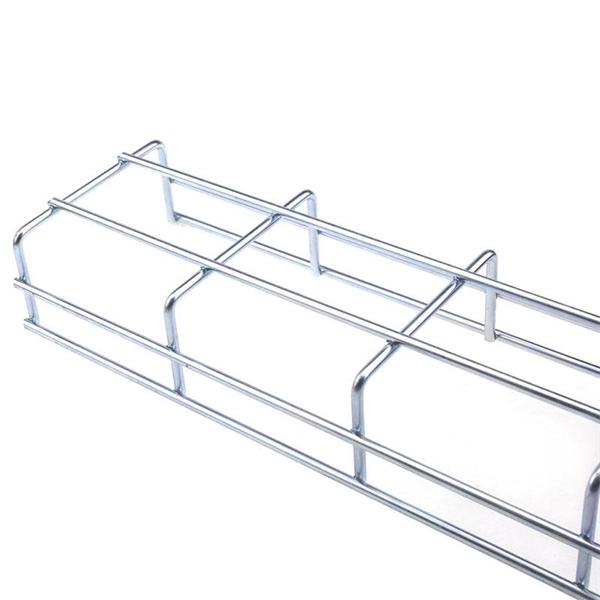

Can sheathed cables be run in cable trays

Fiber optic adapter knowledge brief Published 21 Oct 2020

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

Yes, sheathed cables can be run in cable trays if they are listed for tray use and installed according to NEC requirements.NEC Compliance and Cable Types

The National Electrical Code (NEC) governs cable tray installations under Article 392. Only approved tray-rated cables should be installed, which includes certain types of sheathed cables such as Type MC, TC, ITC, and PLTC, depending on the application and location . These cables are designed to withstand heat, moisture, and mechanical stress typically encountered in cable tray systems .

Installation Guidelines
  • Tray Fill Limits: Power cables should not exceed 40% of the tray's cross-sectional area, and control cables should not exceed 50% .
  • Separation: High-power and low-power cables must be separated to prevent electromagnetic interference (EMI). Sheathed cables can share trays with other cables if proper separation or barriers are used .
  • Grounding: Metallic trays must be properly grounded. Sheathed cables with metallic armor can provide a fault path, but the tray itself may also need bonding depending on the installation .
  • Layering and Spacing: In hazardous locations, sheathed cables may need to be installed in a single layer with spacing equal to the largest cable diameter, though some NEC articles allow multiple layers if the cable is listed for such use .
Environmental Considerations
  • Outdoor or Sunlight Exposure: Use sunlight-resistant sheathed cables and allow for thermal expansion with expansion splice plates .
  • Corrosive or Plenum Environments: Nonmetallic trays and fire-rated ties may be required for sheathed cables in these conditions .
Hazardous Locations

Sheathed cables such as Type MC with a gas/vapor-tight aluminum sheath are permitted in Class I, Division 1 and 2 locations if listed for the application . Proper spacing, grounding, and compliance with NEC articles 318 and 504 are required to ensure safety and fire protection .

Summary

Sheathed cables can be safely run in cable trays when:

  • They are listed for tray use.
  • NEC fill, separation, and grounding requirements are followed.
  • Environmental and hazardous location considerations are addressed. Following these guidelines ensures a safe, code-compliant, and reliable cable tray installation.
