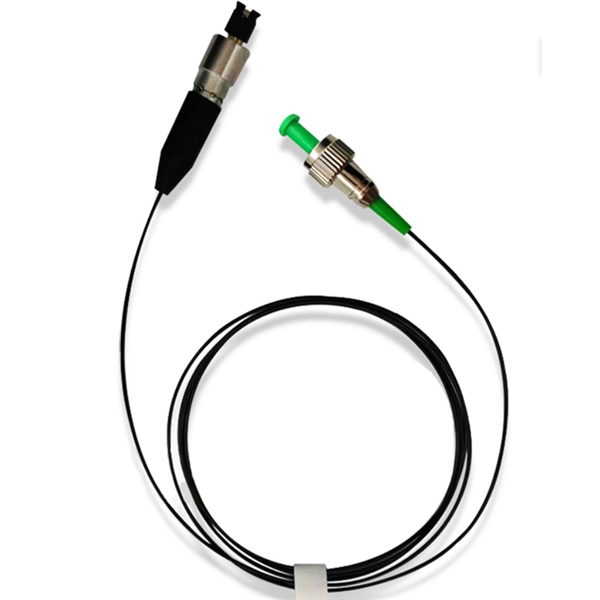

An optical module is a device that converts electrical signals into optical signals and vice versa, enabling high-speed data transmission over fiber optic networks.Overview

An optical module, also known as an optical transceiver, is a key component in optical fiber communication systems. It operates at the physical layer of the OSI model and performs photoelectric conversion, transforming electrical signals into optical signals for transmission and converting received optical signals back into electrical signals for processing . Optical modules are typically hot-pluggable, allowing them to be inserted or removed from networking devices without shutting down the system .

Components

Optical modules generally consist of:

  • Transmitter Optical Sub-Assembly (TOSA): Contains a laser diode (LD) or light-emitting diode (LED) that converts electrical signals into modulated light .
  • Receiver Optical Sub-Assembly (ROSA): Contains a photodetector that converts incoming optical signals back into electrical signals .
  • Driver and Amplifier Circuits: Process electrical signals before transmission and amplify received signals.
  • Optical and Electrical Interfaces: Connect the module to fiber optic cables and the host system .
Types

Optical modules can be classified based on form factor and application:

  • Pluggable Modules: Small Form-Factor Pluggable (SFP), Quad SFP (QSFP), SFP+, and CFP modules, which can be easily inserted or removed .
  • Embedded Modules: Permanently attached to devices, including enhanced SFP, QSFP+, and CXP modules .
Modulation and Performance

Optical modules use various modulation techniques depending on speed and application:

  • On-Off Keying (NRZ) and Pulse-Amplitude Modulation (PAM-4) for standard high-speed data transmission .
  • Coherent Modulation such as Dual Polarization Quadrature Phase Shift Keying (DP-QPSK) and QAM-16 for long-distance and high-bandwidth applications .
  • Tunable Lasers allow modules to adjust wavelengths for optical mesh networks or Reconfigurable Optical Add-Drop Multiplexers (ROADMs), .
Applications

Optical modules are widely used in:

  • Data Centers: Connecting servers, switches, and storage systems.
  • Telecommunications: High-speed backbone networks.
  • 5G Networks: Supporting high-bandwidth, low-latency communication .
Design Considerations

Modern optical module design focuses on:

  • Reduced power consumption to manage heat.
  • Precise laser control for consistent output power.
  • Accurate photodiode sensing for reliable signal reception . Optical modules are essential for enabling high-speed, reliable, and scalable data communication across modern networks, making them a cornerstone of fiber optic technology .
