Fiber Optic Terminal Box Patch Cord Connection

Fiber optic adapter knowledge brief Published 27 Aug 2025

Prepared for preliminary research by the DANI ALONSO OPTICAL knowledge desk. Confirm connector interfaces, sleeve materials, polish, loss budgets and installation requirements against current standards and product documentation.

A fiber optic terminal box connects incoming fiber cables to pigtails, which are then linked to devices via fiber patch cords, forming a complete optical data path.Fiber Optic Terminal Box

A fiber optic terminal box serves as the endpoint for fiber optic cables, providing protection and organization for splicing and connecting fibers. It allows multi-core cables (e.g., 4-core) to be spliced to individual pigtails, which are short fibers with a connector on one end and a bare fiber on the other for fusion splicing ( ). Terminal boxes are not waterproof but are designed to secure cables and adapters, unlike fiber optic closures, which are sealed but cannot fix pigtails ( ).

Optical Pigtails

Pigtails are fibers with a connector at one end and a bare fiber at the other. They are spliced to the incoming fiber in the terminal box and then connected to devices via patch cords. Pigtails come in single-mode or multi-mode, simplex or duplex, and with various connector types such as FC, SC, LC, and ST ( ). They act as the bridge between the terminal box and active equipment like optical transceivers.

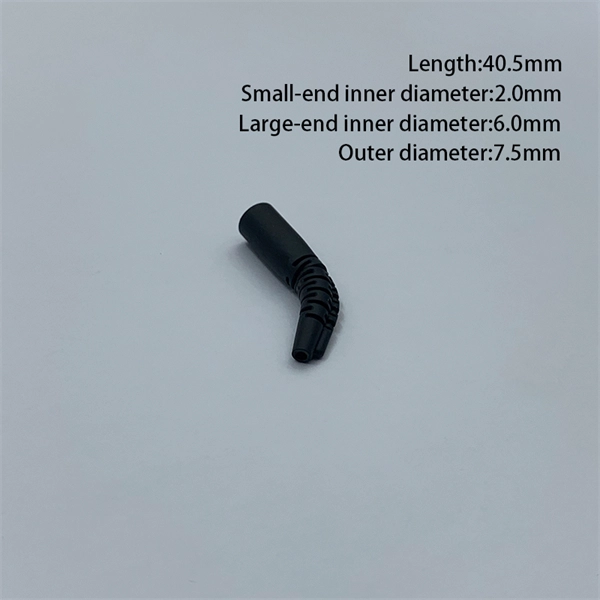

Fiber Optic Patch Cords

Fiber patch cords (also called fiber jumpers) have connectors on both ends and are used to connect pigtails to devices, switches, or patch panels ( ). They are designed for short-distance, flexible connections and come in single-mode or multi-mode, with different jacket types (PVC, LSZH, plenum) depending on the installation environment ( ). Patch cords can be simplex (single fiber) or duplex (two fibers joined together) and must match the connector type of the pigtail or device ( ).

Connection Process
  1. Splicing: The bare end of a pigtail is fusion-spliced to the incoming fiber inside the terminal box.
  2. Adapter Connection: The connector end of the pigtail is inserted into a coupler or adapter in the terminal box.
  3. Patch Cord Linking: A fiber patch cord connects the pigtail to the optical transceiver, switch, or patch panel.
  4. Cable Management: Maintain proper bend radius (≥400mm), avoid excess slack, and label both ends of patch cords for identification ( ).
Best Practices
  • Use the correct connector type (SC, LC, FC, ST) based on equipment requirements.
  • Ensure single-mode fibers for long-distance links and multi-mode fibers for short-distance or intra-data center connections ( ).
  • Keep patch cord lengths appropriate (typically 50cm–3m) to avoid excess slack or tension ( ).
  • Test optical paths with a power meter or visible light source to verify connectivity and signal integrity ( ). By following these steps, a fiber optic terminal box, pigtails, and patch cords can be effectively connected to create a reliable optical network with minimal signal loss.
